G3PE-245 Series

Catalog

RELAY SSR 45A 3PH DIN MNT 2PL

Part	Circuit	Load Current	Output Type	Termination Style	Package / Case	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]
Omron Electronics Inc-EMC Div G3PE-245B-2N DC12-24	DPST-NO (2 Form A)	45 A	AC Zero Cross	Screw Terminal	SSR with Integrated Heat Sink	Chassis Mount DIN Rail	240 V	100 V	24 V	12 V
Omron Electronics Inc-EMC Div G3PE-245B-2 DC12-24	DPST-NO (2 Form A)	45 A	AC Zero Cross	Screw Terminal	SSR with Integrated Heat Sink	Chassis Mount	240 V	100 V	24 V	12 V

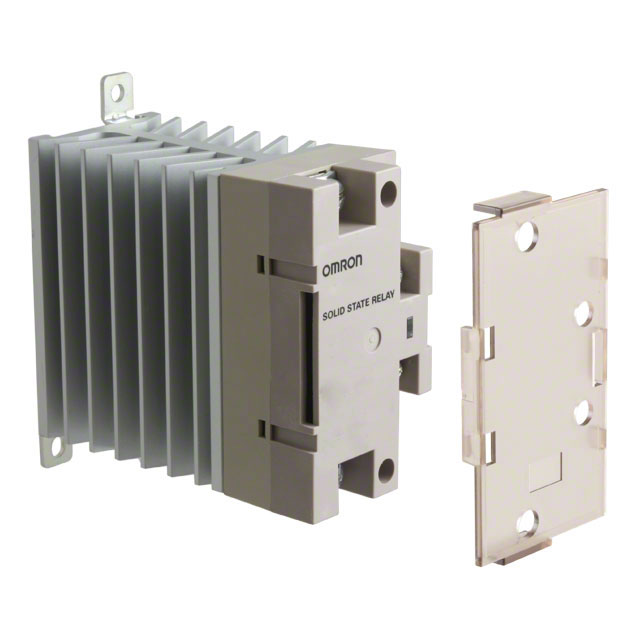

Omron Electronics Inc-EMC Div G3PE-245B-DC12-24		45 A	AC Zero Cross	Screw Terminal	SSR with Integrated Heat Sink	DIN Rail	240 V	100 V	24 V	12 V	CE CSA TUV UR	100 °C	-30 ░C
Omron Electronics Inc-EMC Div G3PE-245BL DC12-24		45 A	AC	Screw Terminal	SSR with Integrated Heat Sink	DIN Rail	240 V	100 V	24 V	12 V	CE CSA TUV UR	100 °C	-30 ░C
Omron Electronics Inc-EMC Div G3PE-245B-3H DC12-24	3PST-NO (3 Form A)	45 A	AC Zero Cross	Screw Terminal	Hockey Puck	Chassis Mount	240 V	100 V	24 V	12 V
