M55-601 Series

Catalog

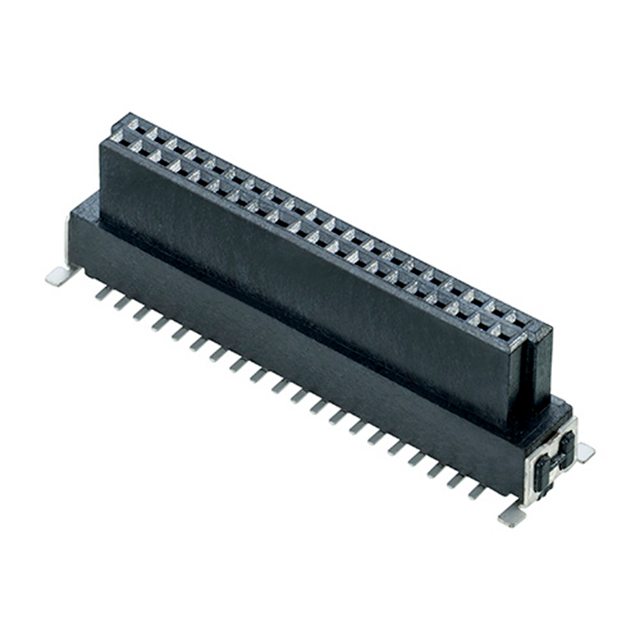

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 68 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Type	Material Flammability Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Insulation Color	Mated Stacking Heights	Number of Positions	Number of Rows [custom]	Termination	Contact Finish - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Mating
Harwin Inc. M55-6016842R	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm	0.356 "	9.05 mm	Female Socket	UL94 V-0	Receptacle	0.025 µm	1 µin	Latch Holder	Board Guide Pick and Place Solder Retention	-55 C	125 °C	100 VAC	1.2 A	Black	10.8 mm 12.3 mm 13.9 mm	68 positions	2	Solder	Tin	All	1.27 mm	0.05 in	Gold
Harwin Inc. M55-6018042R	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm	0.356 "	9.05 mm	Female Socket	UL94 V-0	Receptacle	0.025 µm	1 µin	Latch Holder	Board Guide Pick and Place Solder Retention	-55 C	125 °C	100 VAC	1.2 A	Black	10.8 mm 12.3 mm 13.9 mm	80	2	Solder	Tin	All	1.27 mm	0.05 in	Gold
Harwin Inc. M55-6014042R	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm	0.356 "	9.05 mm	Female Socket	UL94 V-0	Receptacle	0.025 µm	1 µin	Latch Holder	Board Guide Pick and Place Solder Retention	-55 C	125 °C	100 VAC	1.2 A	Black	10.8 mm 12.3 mm 13.9 mm	40	2	Solder	Tin	All	1.27 mm	0.05 in	Gold

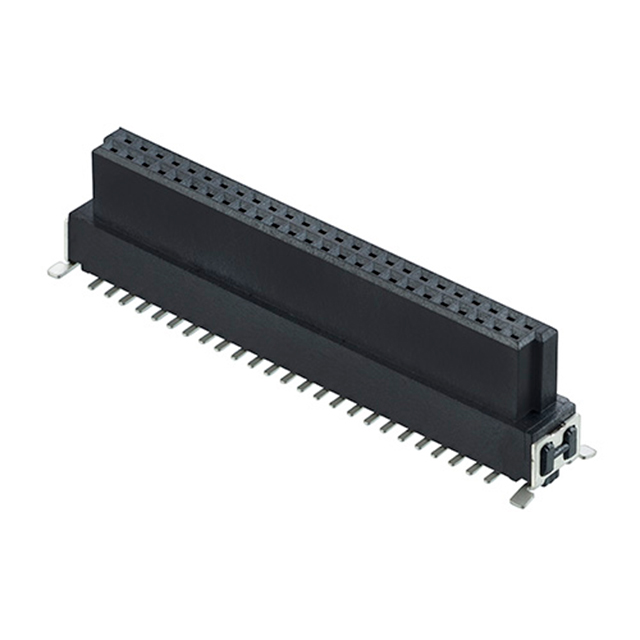

Harwin Inc. M55-6015042R	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm	0.356 "	9.05 mm	Female Socket	UL94 V-0	Receptacle	0.025 µm	1 µin	Latch Holder	Board Guide Pick and Place Solder Retention	-55 C	125 °C	100 VAC	1.2 A	Black	10.8 mm 12.3 mm 13.9 mm	50	2	Solder	Tin	All	1.27 mm	0.05 in	Gold
