SL-B8T3 Series
Manufacturer: Samsung Semiconductor, Inc.
Beta
⌘K

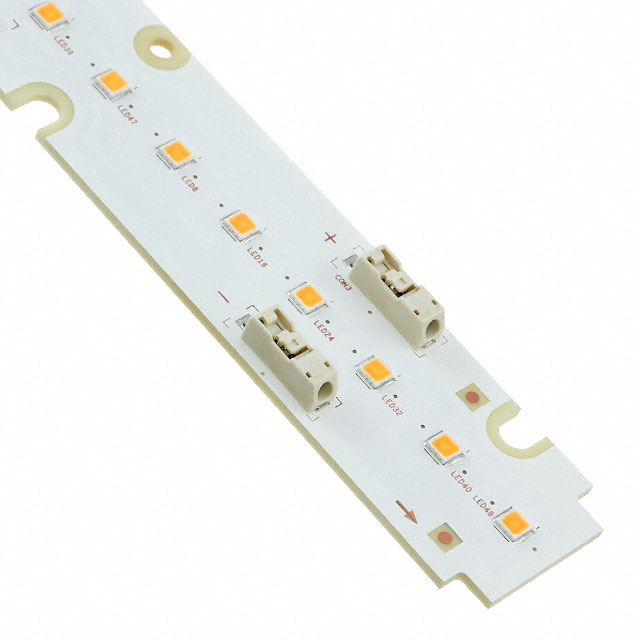

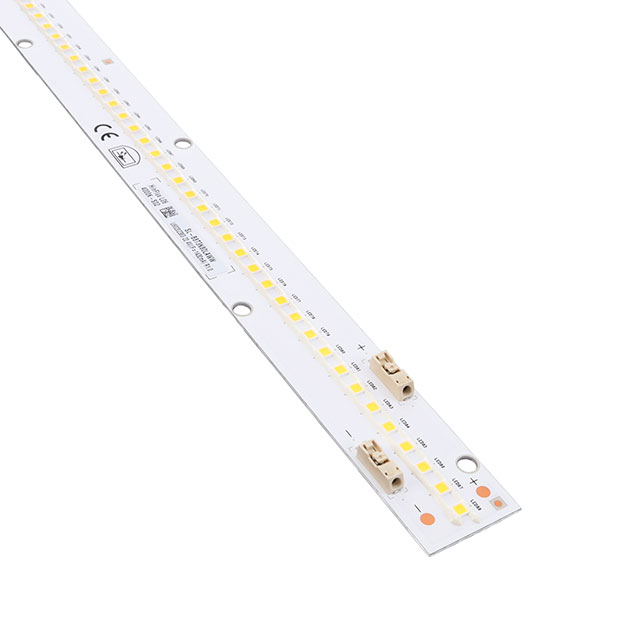

LED MOD H INFLUX LNR STRP 4000K
| Part | Current - Max [Max] | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Color | Height [z] | Luminous Flux @ Current/Temperature | Lens Type | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Temperature - Test | CCT (K) | Viewing Angle | Current - Test | Type | Configuration | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samsung Semiconductor, Inc. | 2.2 A | 191 lm/W | 80 | Neutral White | 5.2 mm | 6110 lm | Flat | 24 mm | 560 mm | 22.4 V | 55 °C | 4000 K | 118 ° | 1.43 A | LED Module | Linear Light Strip | |
 Samsung Semiconductor, Inc. | 1.38 A | 137 lm/W | 80 | Neutral White | 5.9 mm | 4540 lm | Flat | 23.7 mm | 559.5 mm | 24.1 V | 65 °C | 4000 K | 115 ° | 1.38 A | LED Module | Linear Light Strip | With Connector |
