SK24DG Series
Manufacturer: NKK Switches
Beta
⌘K

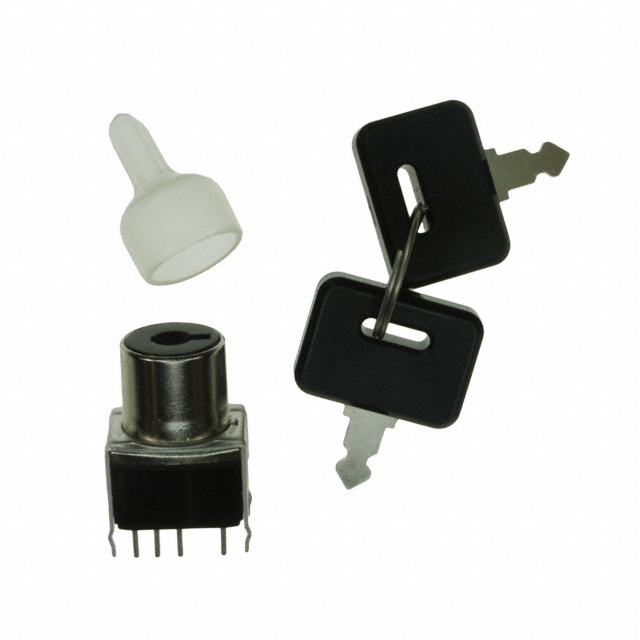

KEYLOCK SWITCH, PROCESS SEALED, ON-ON-ON, DP3T, SK SERIES, 3 POSITION, PC PIN
| Part | Electrical Life | Mechanical Life | Switch Function | Termination Style | Contact Timing | Contact Material | Key Removable Positions | Voltage Rating - DC | Voltage Rating - AC | Features | Angle of Throw | Mounting Type | Circuit | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | On-On-On | PC Pin | Non-Shorting (BBM) | Beryllium Copper | All | 28 V | 28 V | Process Sealed | 45 ° | Through Hole | DP3T | 0.4 VA | -25 °C | 70 °C | Flat Key | Gold |
