9328 Series
Manufacturer: Belden Inc.
Beta
⌘K

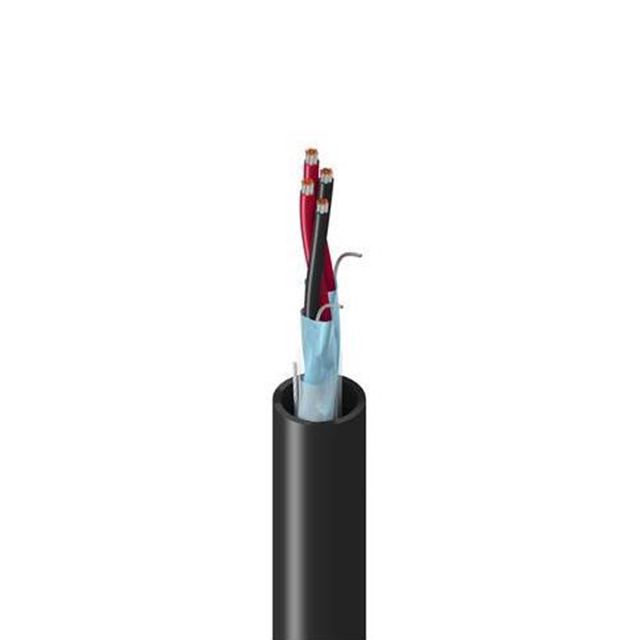

MULTI-PAIR 4COND 22AWG
| Part | Shield Material | Shield Coverage | Conductor Material | Conductor Insulation | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Ratings | Number of Conductors | Features | Cable Type | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | Chrome | 22 AWG | 0.323 in | 8.2 mm | 30 AWG | 7 | Foil | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 4 | Drain Wire Rip Cord | Multi-Pair | 304.8 m | 1000 ft | 0.042 in | 1.067 mm |
Belden Inc. | Aluminum | 100 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | Chrome | 22 AWG | 0.323 in | 8.2 mm | 30 AWG | 7 | Foil | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 4 | Drain Wire Rip Cord | Multi-Pair | 0.042 in | 1.067 mm |
