SMTL6 Series

Catalog

LED RED CLEAR 6PLCC SMD

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Viewing Angle	Millicandela Rating	Color	Current - Test	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Lens Transparency	Supplier Device Package	Configuration	Height (Max) [Max] [z]	Lens Size [diameter]	Lens Color	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test
Bivar Inc. SMTL6-RC	1.8 V 2.3 V	625 nm 626 nm	120 ° 140 °	1350 mcd 2100 mcd	Red	60 mA	Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Clear	6-PLCC	Standard	1.6 mm	4 mm Dia	Colorless	Round with Flat Top

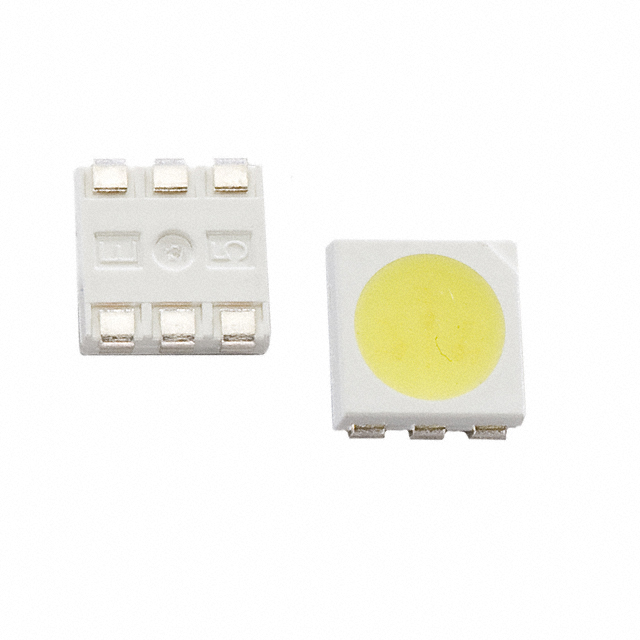

Bivar Inc. SMTL6-UWDN	3 V	5500 K	140 °	4000 mcd	Neutral White	60 mA	Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Diffused	6-PLCC	Standard	1.6 mm	4 mm Dia	Yellow	Round with Flat Top
Bivar Inc. SMTL6-UWDC	3 V 3.2 V	8000 K	120 ° 140 °	4000 mcd 7500 mcd	Cool White	60 mA	Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Diffused	6-PLCC	Standard	1.6 mm	4 mm Dia	Yellow	Round with Flat Top

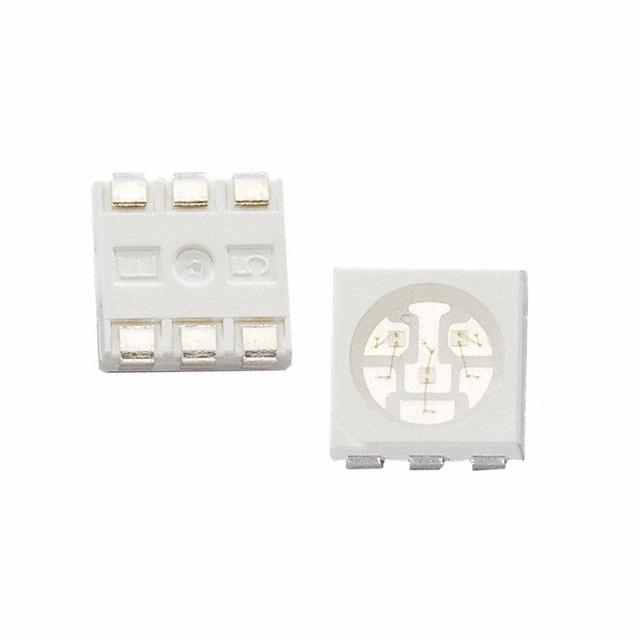

Bivar Inc. SMTL6-RGB	2.2 V 3 V 3 V	470 nm 525 nm 624 nm	120 °		Blue Green Red		Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Clear	6-PLCC	Independent	1.6 mm	4 mm Dia	Colorless	Round with Flat Top	1500 mcd	300 mcd	900 mcd	20mA Blue 20mA Green 20mA Red

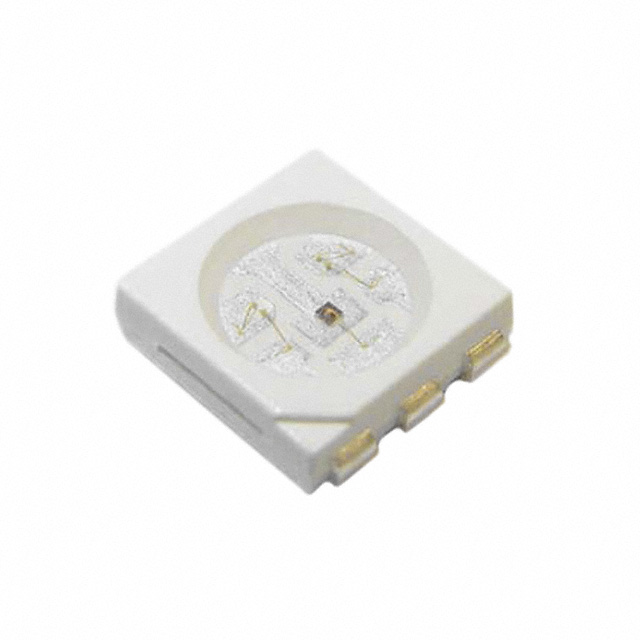

Bivar Inc. SMTL6-BWC	3 V 3.1 V	469 nm 471 nm	120 ° 140 °	1200 mcd 1500 mcd	Blue	60 mA	Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Clear	6-PLCC	Standard	1.6 mm	4 mm Dia	Colorless	Round with Flat Top
Bivar Inc. SMTL6-UWDW	3 V 3.2 V	4500 K	120 ° 140 °	4000 mcd 8000 mcd	Warm White	60 mA	Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Diffused	6-PLCC	Standard	1.6 mm	4 mm Dia	Yellow	Round with Flat Top
Bivar Inc. SMTL6-GC	3.3 V	526 nm	140 °	3500 mcd	Green	60 mA	Surface Mount	5 mm	5.4 mm	6-SMD J-Lead	Clear	6-PLCC	Standard	1.6 mm	4 mm Dia	Colorless	Round with Flat Top
