9G0648 Series

Catalog

DC AXIAL FAN, 49.4CU.FT/MIN, BALL, 60MM ROHS COMPLIANT: YES

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	RPM	Static Pressure	Static Pressure	Bearing Type	Weight	Weight	Voltage - Rated	Noise	Width [y]	Air Flow	Air Flow	Fan Type	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Termination

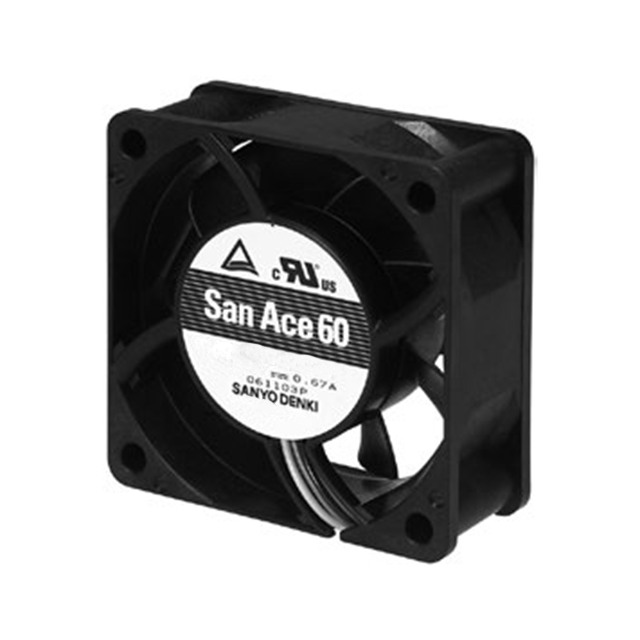

Sanyo Denki America Inc. 9G0648P4S001	Plastic	72 VDC	36 VDC	Plastic	0.18 A	40000 Hrs	60 mm	60 mm	11000 RPM	304.6 Pa	1.223 in H2O	Ball	0.199 lb	90.26 g	48 VDC	53 dB	25 mm	1.38 m³/min	49.4 CFM	Tubeaxial	8.64 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-20 ░C	70 °C	cURus TUV	4 Wire Leads
Sanyo Denki America Inc. 9G0648P4S0011	Plastic	72 VDC	36 VDC	Plastic	0.18 A	40000 Hrs	60 mm	60 mm	11000 RPM	304.6 Pa	1.223 in H2O	Ball	0.199 lb	90.26 g	48 VDC	53 dB	25 mm	1.38 m³/min	49.4 CFM	Tubeaxial	8.64 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-20 ░C	70 °C	cURus TUV	4 Wire Leads
Sanyo Denki America Inc. 9G0648P1G01	Plastic	55.2 VDC	28 V	Plastic	0.35 A	40000 Hrs	60 mm	60 mm	11800 RPM	435.2 Pa	1.747 in H2O	Ball	0.243 lb	110.22 g	48 VDC	58 dB(A)	38 mm	1.82 m³/min	65 CFM	Tubeaxial	16.8 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-20 ░C	70 °C	CSA TUV UL	4 Wire Leads
Sanyo Denki America Inc. 9G0648G102	Plastic	55.2 VDC	28 V	Plastic	0.35 A	40000 Hrs	60 mm	60 mm	11800 RPM	435.2 Pa	1.747 in H2O	Ball	0.243 lb	110.22 g	48 VDC	58 dB(A)	38 mm	1.82 m³/min	65 CFM	Tubeaxial	16.8 W		-20 ░C	70 °C	CSA TUV UL	2 Wire Leads
Sanyo Denki America Inc. 9G0648G1021	Plastic	55.2 VDC	28 V	Plastic	0.35 A	40000 Hrs	60 mm	60 mm	11800 RPM	435.2 Pa	1.747 in H2O	Ball	0.243 lb	110.22 g	48 VDC	58 dB(A)	38 mm	1.82 m³/min	65 CFM	Tubeaxial	16.8 W		-20 ░C	70 °C	CSA TUV UL	2 Wire Leads
Sanyo Denki America Inc. 9G0648G101	Plastic	55.2 VDC	28 V	Plastic	0.35 A	40000 Hrs	60 mm	60 mm	11800 RPM	435.2 Pa	1.747 in H2O	Ball	0.243 lb	110.22 g	48 VDC	58 dB(A)	38 mm	1.82 m³/min	65 CFM	Tubeaxial	16.8 W	Locked Rotor Protection Speed Sensor (Tach)	-20 ░C	70 °C	CSA TUV UL	3 Wire Leads
Sanyo Denki America Inc. 9G0648S1011	Plastic	55.2 VDC	28 V	Plastic	0.29 A	40000 Hrs	60 mm	60 mm	10800 RPM	370.1 Pa	1.486 in H2O	Ball	0.243 lb	110.22 g	48 VDC	56 dB	38 mm	1.68 m³/min	60 CFM	Tubeaxial	13.9 W	Locked Rotor Protection Speed Sensor (Tach)	-20 ░C	70 °C	CSA TUV UL	3 Wire Leads
Sanyo Denki America Inc. 9G0648P1G011	Plastic	55.2 VDC	28 V	Plastic	0.35 A	40000 Hrs	60 mm	60 mm	11800 RPM	435.2 Pa	1.747 in H2O	Ball	0.243 lb	110.22 g	48 VDC	58 dB(A)	38 mm	1.82 m³/min	65 CFM	Tubeaxial	16.8 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-20 ░C	70 °C	CSA TUV UL	4 Wire Leads

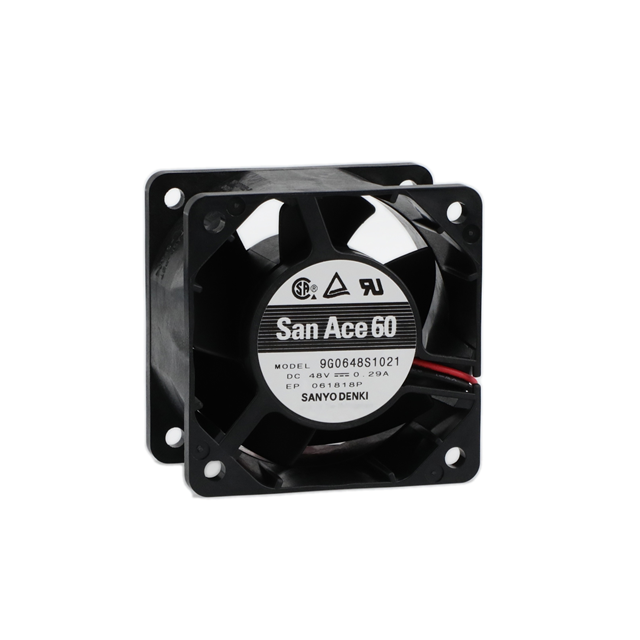

Sanyo Denki America Inc. 9G0648S1021	Plastic	55.2 VDC	28 V	Plastic	0.29 A	40000 Hrs	60 mm	60 mm	10800 RPM	370.1 Pa	1.486 in H2O	Ball	0.243 lb	110.22 g	48 VDC	56 dB	38 mm	1.68 m³/min	60 CFM	Tubeaxial	13.9 W		-20 ░C	70 °C	CSA TUV UL	2 Wire Leads
Sanyo Denki America Inc. 9G0648G1D01	Plastic	55.2 VDC	28 V	Plastic	0.35 A	40000 Hrs	60 mm	60 mm	11800 RPM	435.2 Pa	1.747 in H2O	Ball	0.243 lb	110.22 g	48 VDC	58 dB(A)	38 mm	1.82 m³/min	65 CFM	Tubeaxial	16.8 W	Locked Rotor Sensor	-20 ░C	70 °C	CSA TUV UL	3 Wire Leads
