R1G133 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

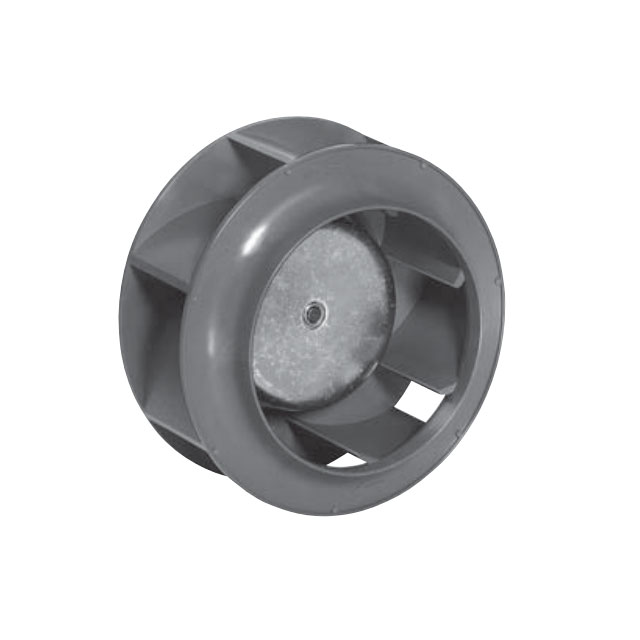

FAN IMP MTRZD 133X91MM 12VDC
| Part | Material - Blade | Air Flow | Air Flow | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Width [x] | Ingress Protection | Noise | Features | Bearing Type | Size / Dimension [diameter] | Size / Dimension | RPM | Fan Type | Approval Agency | Termination | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA66) Nylon 6/6 Fiberglass Reinforced | 5.94 m³/min | 212 CFM | 2.3 A | 8 V | 16 V | 28 W | -25 °C | 60 °C | 91 mm | IP44 | 63 dB | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Ball | 133 mm | Round | 3650 RPM | Motorized Impellers | CSA UL | 4 Wire Leads with Splice Terminals | 12 VDC |
 ebm-papst Inc. | 28 W | -25 °C | 60 °C | 91 mm | IP44 | 63 dB | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Ball | 133 mm | Round | 3900 RPM | Motorized Impellers | CCC CSA UL | 4 Wire Leads with Splice Terminals | 48 VDC |
