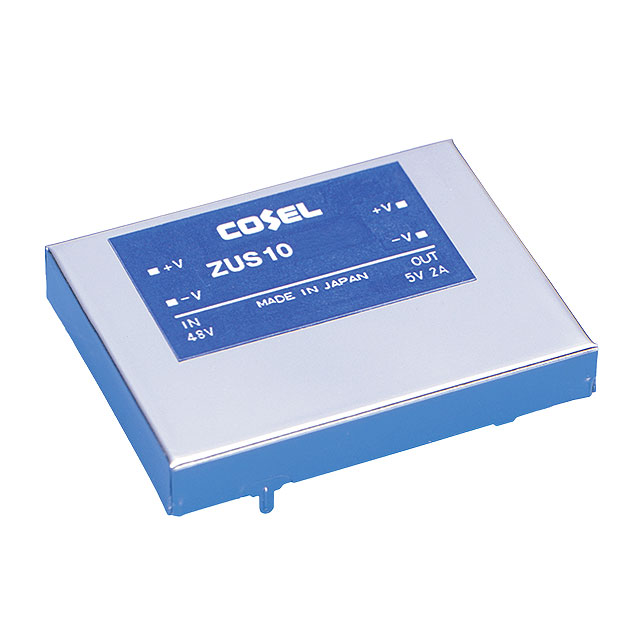

ZUS104805 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 5V 10W
| Part | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Efficiency | Number of Outputs | Type | Current - Output (Max) [Max] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 500 V | 35 mm | 1.77 in | 0.28 " | 7 mm | 45 mm | 1.38 in | 36 V | 72 V | 5 V | 80 % | 1 | Isolated Module | 2 A | 10 W | -20 °C | 71 °C | ITE (Commercial) | 4-DIP Module | Through Hole |
