GRB238D Series
Manufacturer: CW Industries
Beta
⌘K

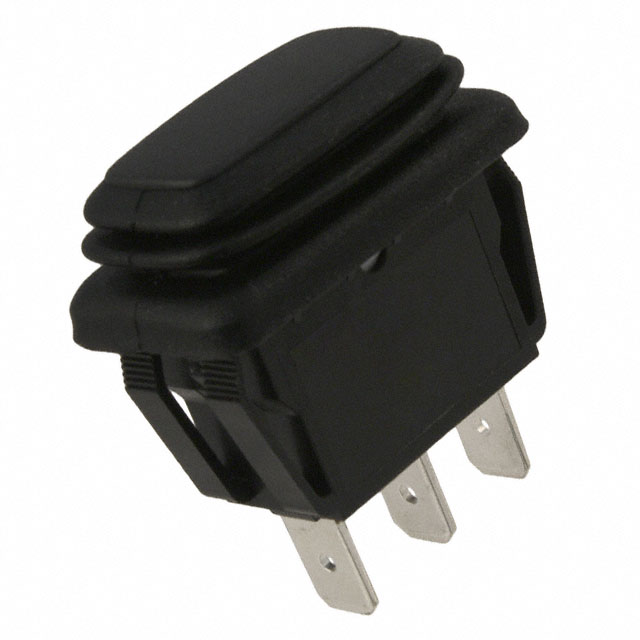

SWITCH ROCKER SPDT 16A 125V
| Part | Mechanical Life | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Switch Function | Approval Agency | Circuit | Mounting Type | Termination Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Ingress Protection | Color - Actuator/Cap | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | 125 V | 27.6 mm | 13.8 mm | No Marking | On-Off-On | cULus ENEC | SPDT | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 10 A 16 A | 85 °C | -25 °C | Flat | IP65 - Dust Tight Water Resistant | Black | 28 V |
CW Industries | 100000 Cycles | 125 V | 27.6 mm | 13.8 mm | No Marking | On-Off-On | cULus ENEC | SPDT | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 15 A 16 A | 85 °C | -25 °C | Flat | IP65 - Dust Tight Water Resistant | Black | 28 V |
