2271139 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

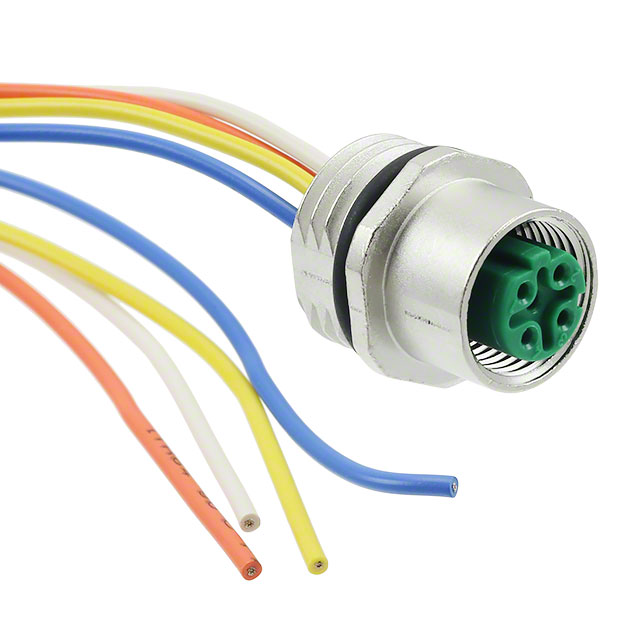

CONN RCPT FMALE 4P WIRE LEADS
| Part | Ingress Protection | Connector Type | Applications | Shell Finish | Primary Material | Color | Shell Size - Insert | Number of Positions | Termination | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Automotive Industrial | Nickel | Metal | Silver | M12-4 | 4 | Wire Leads | 250 VAC | 85 °C | -40 °C | Zinc Die Cast | Gold | 0.5 µm | 19.7 µin | D | Bulkhead - Front Side Nut |
