TPS7A1601 Series

100-mA, 60-V, ultra-low-IQ, low-dropout (LDO) voltage regulator with power good and enable

Catalog

100-mA, 60-V, ultra-low-IQ, low-dropout (LDO) voltage regulator with power good and enable

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Protection Features	Output Configuration	Voltage - Input (Max) [Max]	Mounting Type	Output Type	Current - Output	Voltage - Output (Min/Fixed)	Control Features	PSRR	Voltage Dropout (Max) [Max]	Supplier Device Package	Number of Regulators	Package / Case	Package / Case [custom]	Output Type	Voltage - Output (Max)	Package / Case [custom]	Grade	Qualification	Current - Supply (Max) [Max]	Supplied Contents	Channels per IC	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Type	Utilized IC / Part	Board Type
Texas Instruments TPS7A1633DGNR	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount	1.81 mOhm	100 mA	3.3 V	Enable Power Good	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm

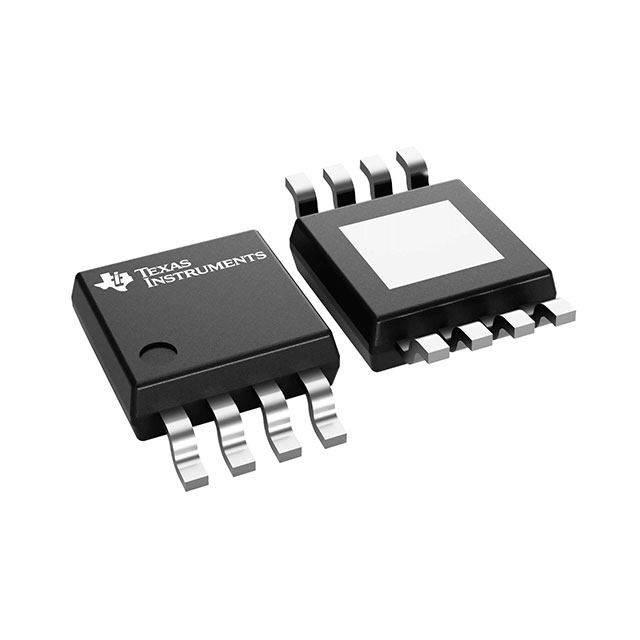

Texas Instruments TPS7A1601ADGNR	150 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount		100 mA	1.2 V	Current Limit Delay Enable Power Good Soft Start	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-PowerTSSOP	0.118 in	Adjustable	18.5 V	3 mm
Texas Instruments TPS7A1650AQDGNRQ1	125 ¯C	-40 °C	15 µA	Over Current Over Temperature UVLO	Positive	60 V	Surface Mount	1.81 mOhm	100 mA	5 V	Enable Power Good	50 dB	0.265 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm				Automotive	AEC-Q100	60 µA
Texas Instruments TPS7A1601QDGNRQ1	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount		100 mA	1.2 V	Enable Power Good	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Adjustable	18.5 V		Automotive	AEC-Q100
Texas Instruments TPS7A1601DGNT	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount		100 mA	1.2 V	Enable Power Good	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Adjustable	18.5 V
Texas Instruments TPS7A1633QDGNRQ1	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount	1.81 mOhm	100 mA	3.3 V	Enable Power Good	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm				Automotive	AEC-Q100

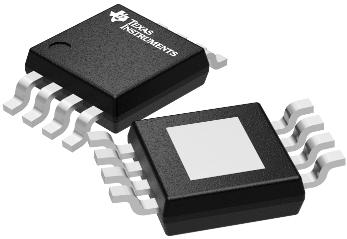

Texas Instruments TPS7A1650QDGNRQ1	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount	1.81 mOhm	100 mA	5 V	Enable Power Good	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm				Automotive	AEC-Q100
Texas Instruments TPS7A1650DGNT	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount	1.81 mOhm	100 mA	5 V	Enable Power Good	50 dB	0.5 V	8-HVSSOP	1	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm
Texas Instruments TPS7A1650DRBT	125 °C	-40 °C	15 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	60 V	Surface Mount	1.81 mOhm	100 mA	5 V	Enable Power Good	50 dB	0.5 V	8-SON (3x3)	1	8-VDFN Exposed Pad

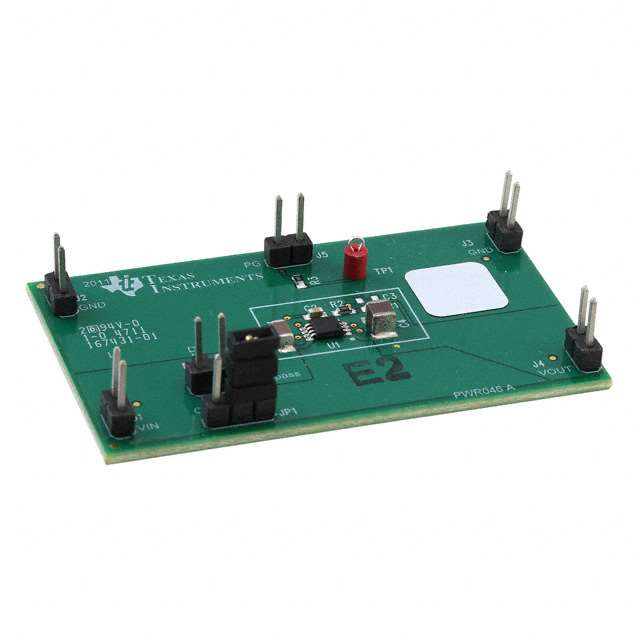

Texas Instruments TPS7A1601EVM-046									100 mA															Board(s)	1 - Single	5 V	60 V	6 V	Positive Adjustable	TPS7A1601	Fully Populated

Catalog

100-mA, 60-V, ultra-low-IQ, low-dropout (LDO) voltage regulator with power good and enable

Key Features

• Wide Input Voltage Range: 3 V to 60 VUltralow Quiescent Current: 5 µAQuiescent Current at Shutdown: 1 µAOutput Current: 100 mALow Dropout Voltage: 60 mV at 20 mAAccuracy: 2%Available in:Fixed Output Voltage: 3.3 V, 5 VAdjustable Version from 1.2 V to 18.5 VPower-Good With Programmable DelayCurrent Limit and Thermal Shutdown ProtectionsStable with Ceramic Output Capacitors:≥ 2.2 µFPackages: High Thermal Performance MSOP-8and SON-8 PowerPAD™Operating Temperature Range:–40°C to 125°CWide Input Voltage Range: 3 V to 60 VUltralow Quiescent Current: 5 µAQuiescent Current at Shutdown: 1 µAOutput Current: 100 mALow Dropout Voltage: 60 mV at 20 mAAccuracy: 2%Available in:Fixed Output Voltage: 3.3 V, 5 VAdjustable Version from 1.2 V to 18.5 VPower-Good With Programmable DelayCurrent Limit and Thermal Shutdown ProtectionsStable with Ceramic Output Capacitors:≥ 2.2 µFPackages: High Thermal Performance MSOP-8and SON-8 PowerPAD™Operating Temperature Range:–40°C to 125°C

Description

The TPS7A16 family of ultralow power, low-dropout (LDO) voltage regulators offers the benefits of ultra-low quiescent current, high input voltage and miniaturized, high thermal-performance packaging. The TPS7A16 family is designed for continuous or sporadic (power backup) battery-powered applications where ultralow quiescent current is critical to extending system battery life. The TPS7A16 family offers an enable pin (EN) compatible with standard CMOS logic and an integrated open drain active-high power good output (PG) with a user-programmable delay. These pins are intended for use in microcontroller-based, battery-powered applications where power-rail sequencing is required. In addition, the TPS7A16 is ideal for generating a low-voltage supply from multicell solutions ranging from high cell-count power-tool packs to automotive applications; not only can this device supply a well-regulated voltage rail, but it can also withstand and maintain regulation during voltage transients. These features translate to simpler and more cost-effective, electrical surge-protection circuitry. The TPS7A16 family of ultralow power, low-dropout (LDO) voltage regulators offers the benefits of ultra-low quiescent current, high input voltage and miniaturized, high thermal-performance packaging. The TPS7A16 family is designed for continuous or sporadic (power backup) battery-powered applications where ultralow quiescent current is critical to extending system battery life. The TPS7A16 family offers an enable pin (EN) compatible with standard CMOS logic and an integrated open drain active-high power good output (PG) with a user-programmable delay. These pins are intended for use in microcontroller-based, battery-powered applications where power-rail sequencing is required. In addition, the TPS7A16 is ideal for generating a low-voltage supply from multicell solutions ranging from high cell-count power-tool packs to automotive applications; not only can this device supply a well-regulated voltage rail, but it can also withstand and maintain regulation during voltage transients. These features translate to simpler and more cost-effective, electrical surge-protection circuitry.
