MP1400 Series

Catalog

EVAL BOARD FOR MP1400

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Current - Output	Contents	Voltage - Output	Utilized IC / Part	Package / Case	Voltage - Input (Min) [Min]	Output Type	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Voltage - Output (Min/Fixed)	Number of Outputs	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Function	Output Configuration
Monolithic Power Systems Inc. EV1400-C-01A	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	Buck-Boost	1.5 MHz	7 V	2.7 V	DC/DC Negative Inverter	600 mA	Board(s)	-5 V	MP1400

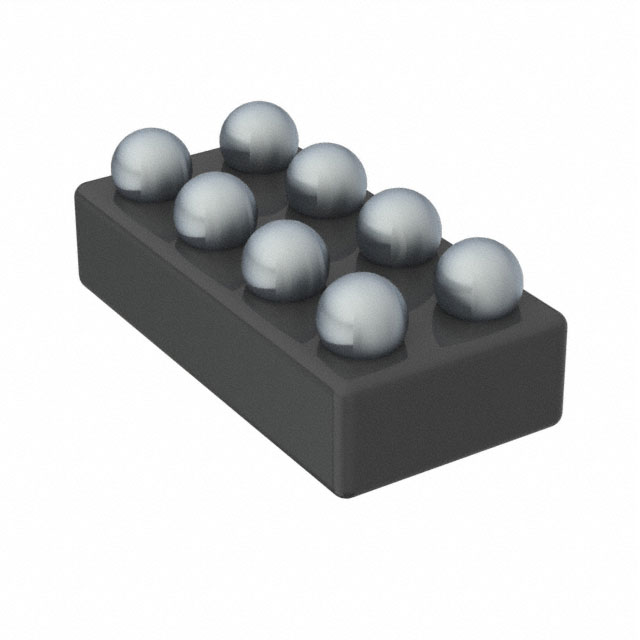

Monolithic Power Systems Inc. MP1400GC-P						1.5 MHz				600 mA				8-UFBGA CSPBGA	2.7 V	Adjustable	Surface Mount	1.6	8-CSP	0.8	-1 V	1	Buck	-40 C	125 °C	7 V	-6 V	Step-Down	Negative
Monolithic Power Systems Inc. MP1400GC-Z						1.5 MHz				600 mA				8-UFBGA CSPBGA	2.7 V	Adjustable	Surface Mount	1.6	8-CSP	0.8	-1 V	1	Buck	-40 C	125 °C	7 V	-6 V	Step-Down	Negative
