BGC90 Series
Manufacturer: TE Intercontec
Beta
⌘K

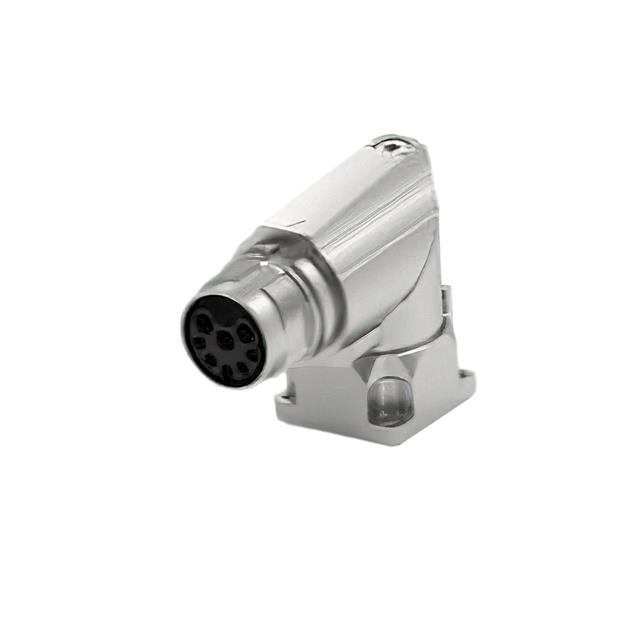

CONN RCPT HSG MALE 9P PNL MT RA
| Part | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Note | Contact Shape | Type | Mounting Feature | Shell Size - Insert | Shell Material | Shielding | Connector Type | Number of Positions | Material Flammability Rating | Features | Mounting Type | Shell Finish | Ingress Protection | Fastening Type | Housing Color | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | 1 Backshell 1 Connector 1 O-Ring | -20 ░C | 130 °C | Polybutylene Terephthalate (PBT) | Contacts Not Included | Circular | For Male Pins | Flange | M17-9 | Zinc Die Cast | Unshielded | Receptacle Housing | 9 | UL94 V-0 | Backshell Rotatable | Panel Mount Right Angle | Chromate | IP66 IP67 | Push-Twist | Silver | Keyed |
