78554 Series

Catalog

CONN HEADER R/A 36POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Connector Type	Fastening Type	Number of Positions	Contact Shape	Shrouding	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Termination	Insulation Color	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Contact Material	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Material	Number of Positions

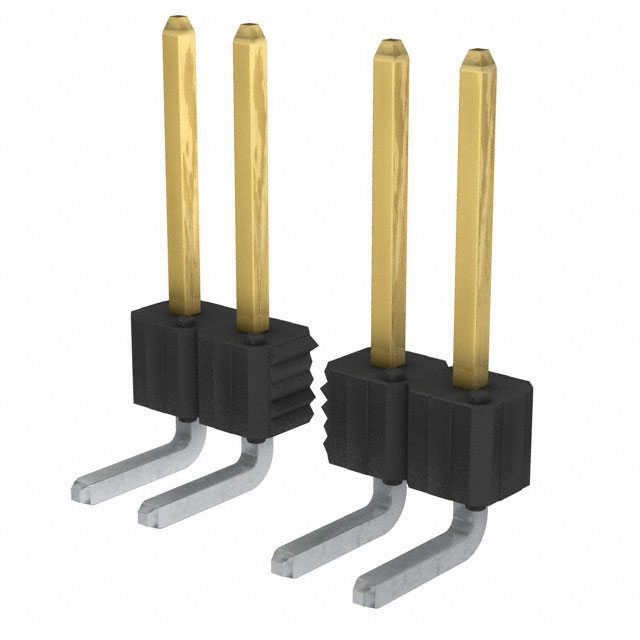

Amphenol ICC (FCI) 78554-236	0.1 in	2.54 mm	Header	Push-Pull	36	Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	15 µin	0.38 µm
Amphenol ICC (FCI) 78554-205HTLF	0.1 in	2.54 mm	Header	Push-Pull		Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	15 µin	0.38 µm
Amphenol ICC (FCI) 78554-112	0.1 in	2.54 mm	Header	Push-Pull	12	Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	30 Áin	0.76 Ám

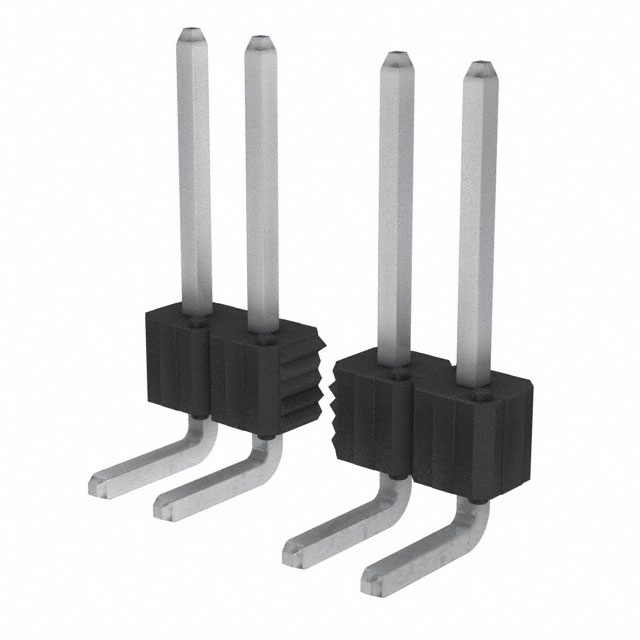

Amphenol ICC (FCI) 78554-411HLF	0.1 in	2.54 mm	Header	Push-Pull	11	Square	Unshrouded	UL94 V-0	1		Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	100 çin	2.54 çm	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled
Amphenol ICC (FCI) 78554-207HLF	0.1 in	2.54 mm	Header	Push-Pull	7	Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	15 µin	0.38 µm
Amphenol ICC (FCI) 78554-423HLF	0.1 in	2.54 mm	Header	Push-Pull	23	Square	Unshrouded	UL94 V-0	1		Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	100 çin	2.54 çm	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled
Amphenol ICC (FCI) 78554-236HLF	0.1 in	2.54 mm	Header	Push-Pull	36	Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	15 µin	0.38 µm	Tin
Amphenol ICC (FCI) 78554-105H	0.1 in	2.54 mm	Header	Push-Pull		Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	30 Áin	0.76 Ám
Amphenol ICC (FCI) 78554-105HLF	0.1 in	2.54 mm	Header	Push-Pull		Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	30 Áin	0.76 Ám
Amphenol ICC (FCI) 78554-216HLF	0.1 in	2.54 mm	Header	Push-Pull		Square	Unshrouded	UL94 V-0	1	Gold or Gold GXT™	Kinked Pin Solder	Black	Through Hole Right Angle	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	All	0.095 in	2.41 mm	0.12 in	3.05 mm	15 µin	0.38 µm			16
