Headers & Wire Housings MINI-FIT JR HDR 03P RA 94V-0

Manufacturer: Molex

Catalog

Headers & Wire Housings MINI-FIT JR HDR 03P RA 94V-0

...

Part	Fastening Type	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Color	Style	Features	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Number of Positions	Contact Finish - Post	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating

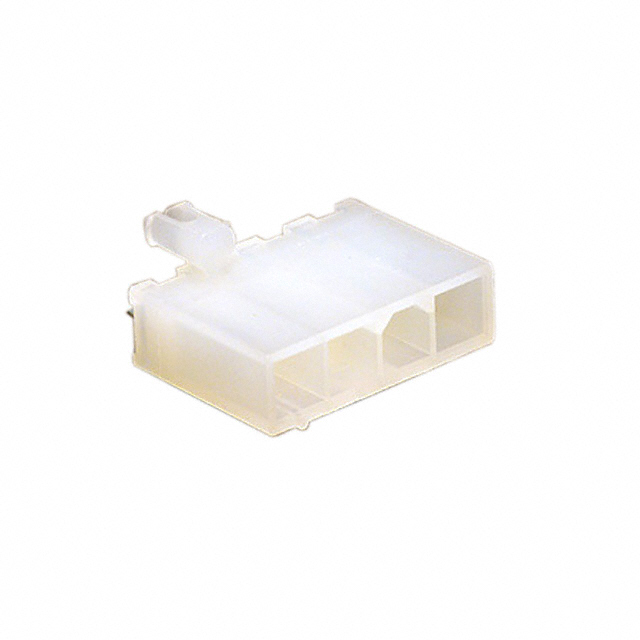

Molex 0039301040	Locking Ramp	9.6 mm	0.378 in	All	Brass	Right Angle Through Hole	0.165 in	4.2 mm	2	Solder	0.165 in	4.2 mm	Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-2	0.142 in	3.6 mm	Nylon 6/6 Polyamide (PA66)	100 çin	2.54 çm	Shrouded - 4 Wall	Male Pin	4	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications
Molex 0039303056	Locking Ramp			All	Brass	Right Angle Through Hole	0.165 in	4.2 mm		Solder			Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-0	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	100 çin	2.54 çm	Shrouded - 4 Wall	Male Pin	5	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications	1	12.8 mm	0.504 "

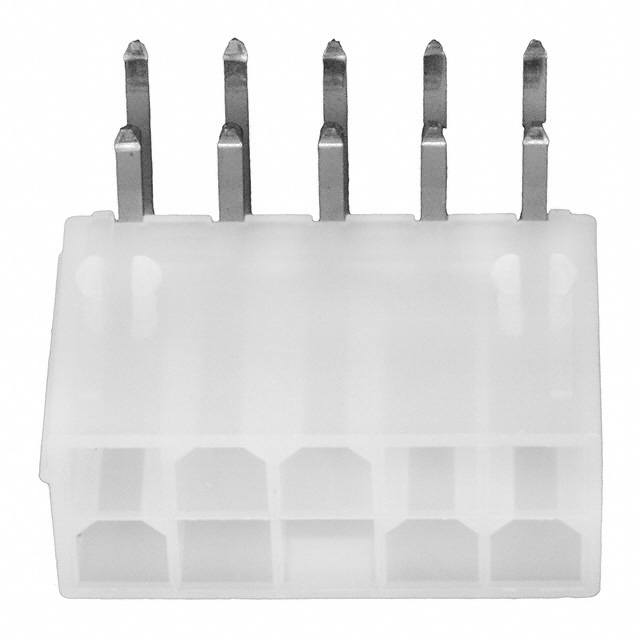

Molex 0039301101	Locking Ramp	9.6 mm	0.378 in	All	Brass	Right Angle Through Hole	0.165 in	4.2 mm	2	Solder	0.165 in	4.2 mm	Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-2	0.142 in	3.6 mm	Nylon 6/6 Polyamide (PA66)	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	10	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications				Gold
Molex 0039307052	Locking Ramp			All	Brass	Right Angle Through Hole	0.165 in	4.2 mm		Solder			Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-0	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	100 çin	2.54 çm	Shrouded - 4 Wall	Male Pin	5	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications	1	12.8 mm	0.504 "
Molex 0039306021	Locking Ramp			All	Brass	Through Hole			2	Solder	0.165 in	4.2 mm	Square	Natural	Board to Cable/Wire		UL94 V-2	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	100 çin	2.54 çm	Shrouded - 4 Wall	Male Pin	2	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications		12.8 mm	0.504 "
Molex 0039300107	Locking Ramp			All	Brass	Through Hole	0.165 in	4.2 mm	2	Solder	0.165 in	4.2 mm	Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-0	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	15 µin	0.38 µm	Shrouded - 4 Wall	Male Pin	10	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications		12.8 mm	0.504 "	Gold
Molex 0039301049	Locking Ramp			All	Brass	Through Hole	0.165 in	4.2 mm		Solder			Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-2	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	35.4 µin	0.9 µm	Shrouded - 4 Wall	Male Pin	4	Tin	Header	0.9 µm	35 µin	General Purpose Industrial Telecommunications	1	12.8 mm	0.504 "
Molex 0039302045	Locking Ramp			All	Brass	Through Hole	0.165 in	4.2 mm		Solder			Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-0	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	35.4 µin	0.9 µm	Shrouded - 4 Wall	Male Pin	4	Tin	Header	0.9 µm	35 µin	General Purpose Industrial Telecommunications	1	12.8 mm	0.504 "

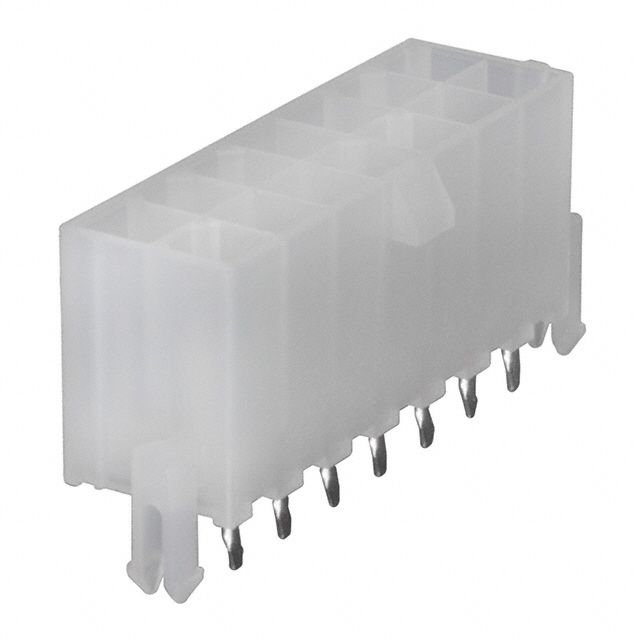

Molex 0039306147	Locking Ramp			All	Brass	Through Hole	0.165 in	4.2 mm	2	Solder	0.165 in	4.2 mm	Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-0	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	100 çin	2.54 çm	Shrouded - 4 Wall	Male Pin	14	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications		12.8 mm	0.504 "
Molex 0039306025	Locking Ramp			All	Brass	Through Hole			2	Solder	0.165 in	4.2 mm	Square	Natural	Board to Cable/Wire	Board Lock	UL94 V-0	0.138 in	3.5 mm	Nylon 6/6 Polyamide (PA66)	100 çin	2.54 çm	Shrouded - 4 Wall	Male Pin	2	Tin	Header	2.54 µm	100 µin	General Purpose Industrial Telecommunications		12.8 mm	0.504 "
