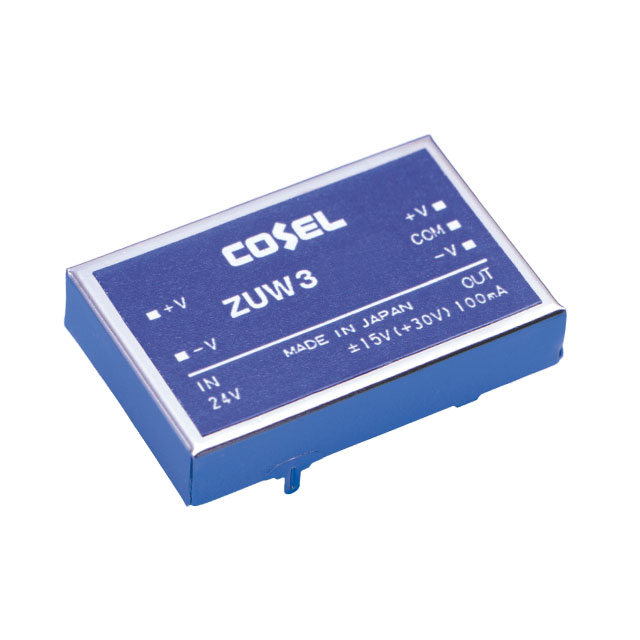

ZUW34812 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-12V 24V 3.1W
| Part | Power (Watts) | Number of Outputs | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Current - Output (Max) | Current - Output (Max) | Package / Case | Voltage - Output 2 | Type | Voltage - Isolation | Efficiency | Voltage - Input (Min) [Min] | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 3.1 W | 2 | ITE (Commercial) | 7 mm | 0.91 in | 23 mm | 0.28 " | 1.38 " | 35 mm | 130 mA | 130 mA | 5-DIP Module | -12 V | Isolated Module | 500 V | 75 % | 36 V | 12 V | -20 °C | 71 °C | Through Hole | 72 V |
