200A Series

Manufacturer: E-Switch

Catalog

TOGGLE SWITCHES 3A 120VAC / 28VDC ON-OFF-(ON) PC MNT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Type	Switch Function	Circuit	Voltage Rating - AC	Ingress Protection	Features	Voltage Rating - DC	Illumination	Mounting Type	Termination Style	Actuator Length [x]	Bushing Thread	Actuator Material	Electrical Life
E-Switch 200AWMSP5T1A1M2QE	85 °C	-30 ░C	3 A	Standard Round	On-Off-Mom	SPDT	120 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	28 V	Non-Illuminated	Through Hole	PC Pin	10.16 mm	Unthreaded
E-Switch 200AWMSP4T2A1M2QE	85 °C	-30 ░C	3 A	Standard Round	Mom-Off-Mom	SPDT	120 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	28 V	Non-Illuminated	Through Hole	PC Pin	6.1 mm	Unthreaded
E-Switch 200AWMSP4T2A1M61RE	85 °C	-30 ░C	0.4 VA	Standard Round	Mom-Off-Mom	SPDT	20 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	20 V	Non-Illuminated	Right Angle Through Hole	PC Pin	6.1 mm	Unthreaded
E-Switch 200AWMDP1T2A1M6QE	85 °C	-30 ░C	3 A	Standard Round	On-On	DPDT	120 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	28 V	Non-Illuminated	Right Angle Through Hole	PC Pin	6.1 mm	Unthreaded

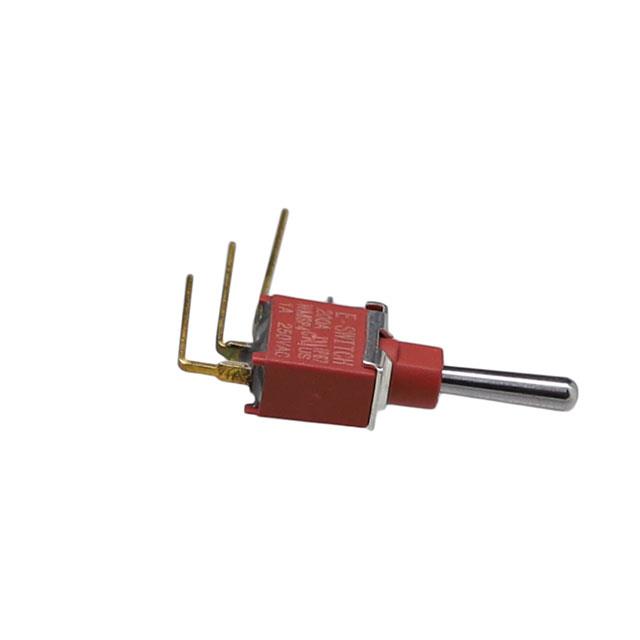

E-Switch 200AWMSP4T1A1M7QE	85 °C	-30 ░C	3 A	Standard Round	Mom-Off-Mom	SPDT	120 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	28 V	Non-Illuminated	Right Angle Through Hole Vertical	PC Pin	10.16 mm	Unthreaded	Brass Chrome Plated	50000 Cycles
E-Switch 200AWMDP1T1A2M2QE	85 °C	-30 ░C	3 A	Standard Round	On-On	DPDT	120 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	28 V	Non-Illuminated	Through Hole	PC Pin	10.16 mm	Unthreaded
E-Switch 200AWMDP3T1A1M2RE	85 °C	-30 ░C	0.4 VA	Standard Round	On-Off-On	DPDT	20 V	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	20 V	Non-Illuminated	Through Hole	PC Pin	10.16 mm	Unthreaded
