1586019 Series

Catalog

CONN RCPT HSG 20POS 4.20MM

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Fastening Type	Number of Positions	Number of Rows	Contact Termination	Note	Connector Type	Row Spacing	Row Spacing	Contact Type	Pitch [x]	Pitch [x]	Number of Positions
TE Connectivity Raychem Cable Protection 2-1586019-0	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Latch Lock	20	2	Crimp	Contacts Not Included	Receptacle	4.2 mm	0.165 in	Female Socket	4.2 mm	0.165 in
TE Connectivity Raychem Cable Protection 1586019-2	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Latch Lock	2	2	Crimp	Contacts Not Included	Receptacle	4.2 mm	0.165 in	Female Socket
TE Connectivity Raychem Cable Protection 1-1586019-6	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Latch Lock		2	Crimp	Contacts Not Included	Receptacle	4.2 mm	0.165 in	Female Socket	4.2 mm	0.165 in	16

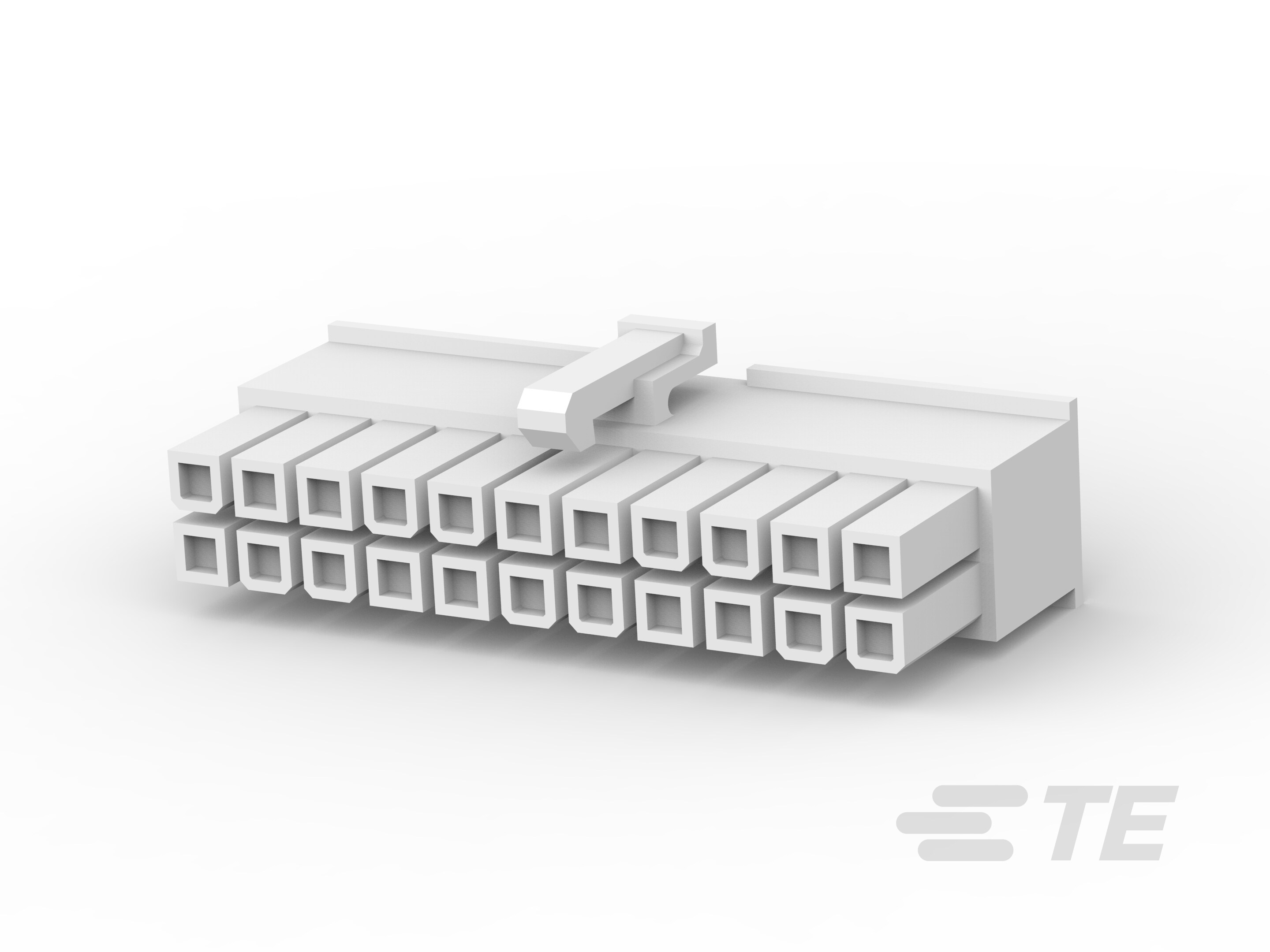

TE Connectivity Raychem Cable Protection 2-1586019-2	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Latch Lock	22 positions	2	Crimp	Contacts Not Included	Receptacle	4.2 mm	0.165 in	Female Socket	4.2 mm	0.165 in

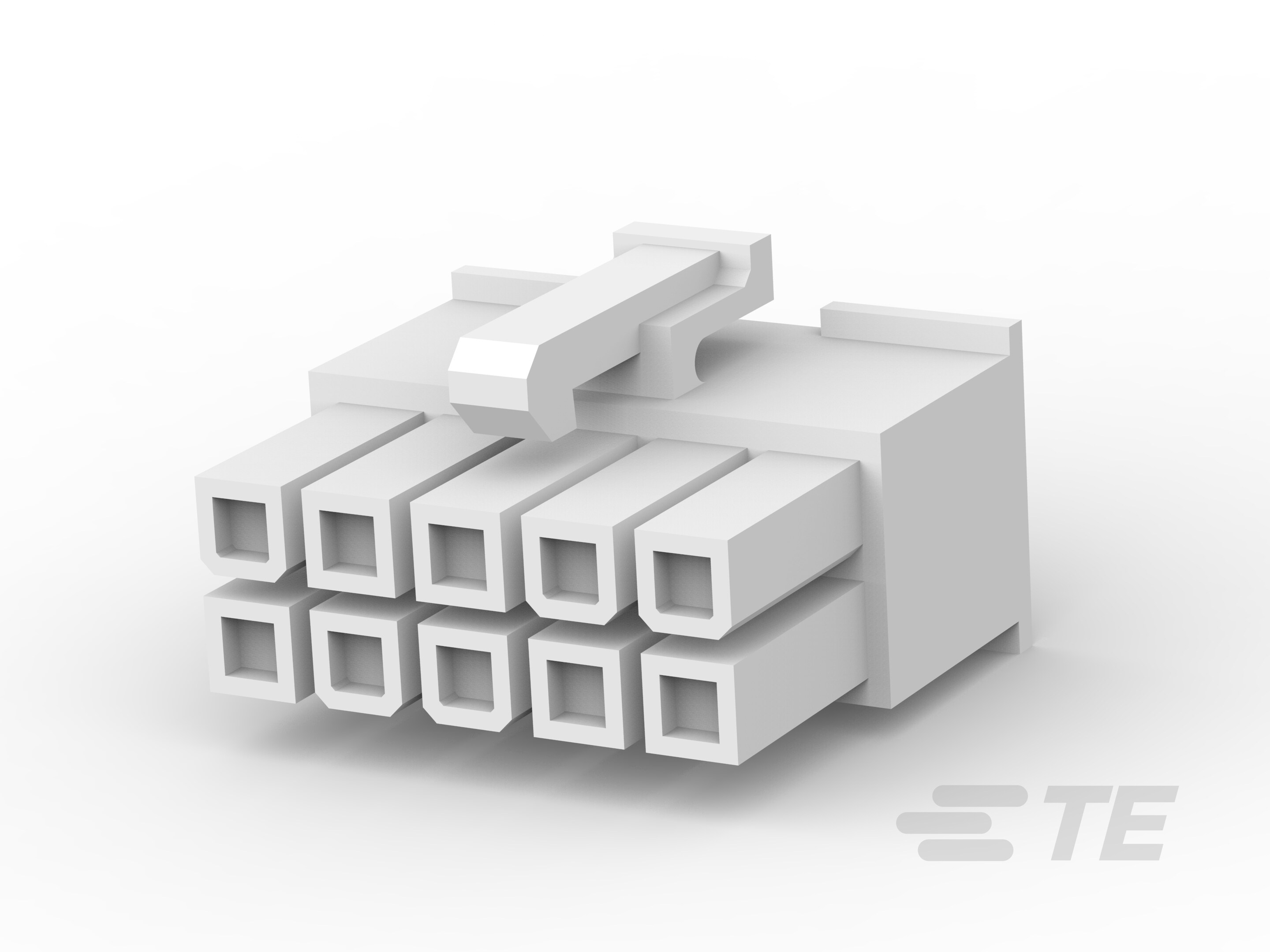

TE Connectivity Raychem Cable Protection 1-1586019-0	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Latch Lock	10	2	Crimp	Contacts Not Included	Receptacle	4.2 mm	0.165 in	Female Socket	4.2 mm	0.165 in

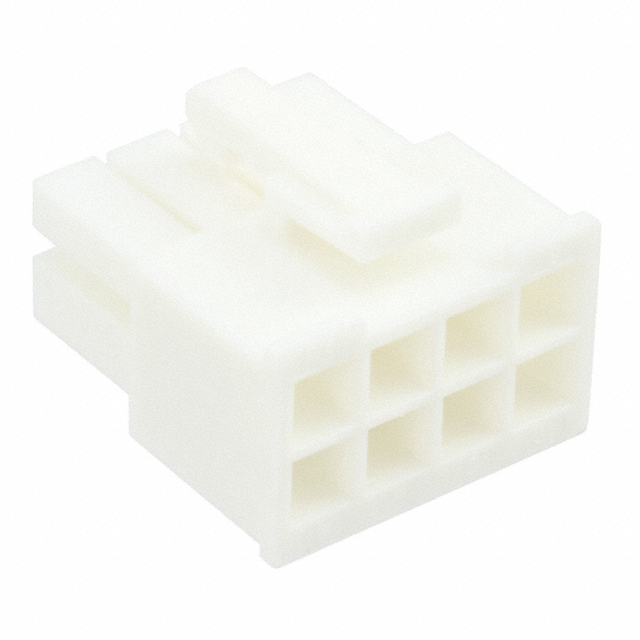

TE Connectivity Raychem Cable Protection 1586019-8	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Latch Lock	8	2	Crimp	Contacts Not Included	Receptacle	4.2 mm	0.165 in	Female Socket	4.2 mm	0.165 in
