SD103 Series

Catalog

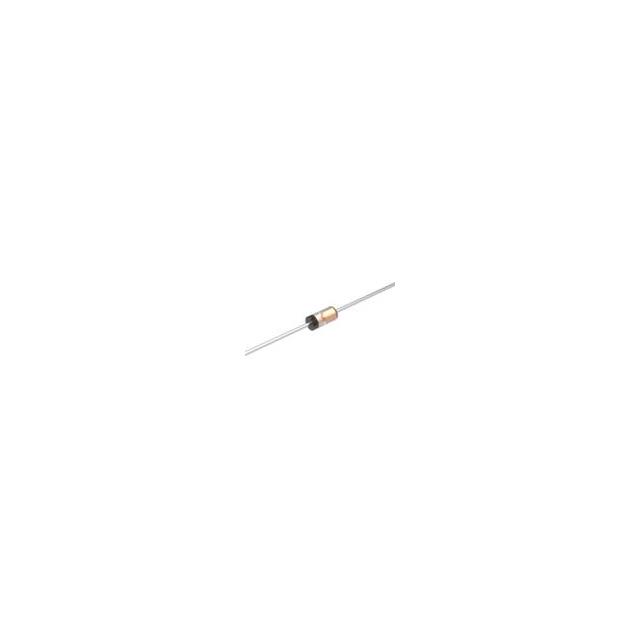

DIODE SCHOTTKY 40V 15A DO35

Part	Technology	Speed	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Operating Temperature - Junction	Current - Reverse Leakage @ Vr	Supplier Device Package	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Qualification	Grade
Micro Commercial Components SD103A-TP	Schottky	200 mA 500 ns	10 ns	40 V	Axial DO-204AH DO-35	15 A	600 mV	Through Hole	125 °C	5 µA	DO-35
Micro Commercial Components SD103AX-TP	Schottky	200 mA 500 ns	10 ns	40 V	SC-79 SOD-523	350 mA	600 mV	Surface Mount		5 µA	SOD-523	50 pF	125 °C	-65 C
Micro Commercial Components SD103AWSL-TP	Schottky	200 mA 500 ns	10 ns	40 V	SC-90 SOD-323F	350 mA	600 mV	Surface Mount		5 µA	SOD-323FL	50 pF	125 °C	-55 °C
Micro Commercial Components SD103AWSHE3-TP	Schottky	200 mA 500 ns	10 ns	40 V	SC-76 SOD-323	350 mA	600 mV	Surface Mount		5 µA	SOD-323	50 pF	125 °C	-55 °C	AEC-Q101	Automotive
Micro Commercial Components SD103AWHE3-TP	Schottky	200 mA 500 ns	10 ns	40 V	SOD-123	350 mA	600 mV	Surface Mount		5 µA	SOD-123	50 pF	125 °C	-55 °C	AEC-Q101	Automotive
Micro Commercial Components SD103AX-TP-HF	Schottky	200 mA 500 ns	10 ns	40 V	SC-79 SOD-523	350 mA	600 mV	Surface Mount		5 µA	SOD-523	50 pF	125 °C	-65 C
