227754 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

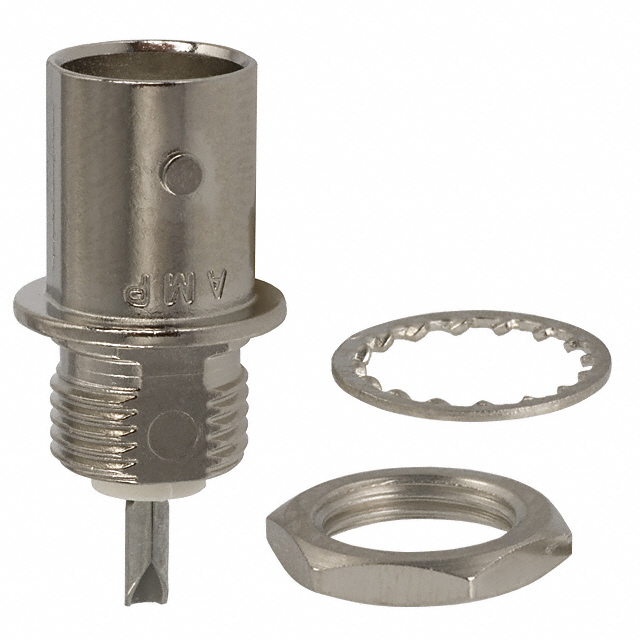

CONN BNC RCPT STR 50 OHM SOLDER
| Part | Fastening Type | Contact Termination | Center Contact Plating | Shield Termination | Dielectric Material | Includes | Number of Ports | Voltage Rating | Housing Color | Features | Connector Style | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Body Material | Impedance | Mating Cycles | Frequency - Max [Max] | Body Finish | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Bayonet Lock | Solder Cup | Silver | Solder | Polybutylene Terephthalate (PBT) | 1 Connector 1 Lockwasher 1 Nut | 1 | 500 V | Silver | Extended Insulation | BNC | Phosphor Bronze | -65 ░C | 165 °C | Female Socket Jack | Zinc | 50 Ohms | 500 | 4 GHz | Nickel | Bulkhead - Rear Side Nut |
TE Connectivity Raychem Cable Protection | Bayonet Lock | Solder Cup | Gold | Solder | Polybutylene Terephthalate (PBT) | 1 Connector 1 Lockwasher 1 Nut | 1 | 500 V | Silver | Extended Insulation | BNC | Phosphor Bronze | -65 ░C | 165 °C | Female Socket Jack | Zinc | 50 Ohms | 500 | 4 GHz | Nickel | Bulkhead - Rear Side Nut |
TE Connectivity Raychem Cable Protection | Bayonet Lock | Solder Cup | Tin | Solder | Polybutylene Terephthalate (PBT) | 1 Connector 1 Lockwasher 1 Nut | 1 | 500 V | Silver | Extended Insulation | BNC | Phosphor Bronze | -65 ░C | 165 °C | Female Socket Jack | Zinc | 50 Ohms | 500 | 4 GHz | Nickel | Bulkhead - Rear Side Nut |
