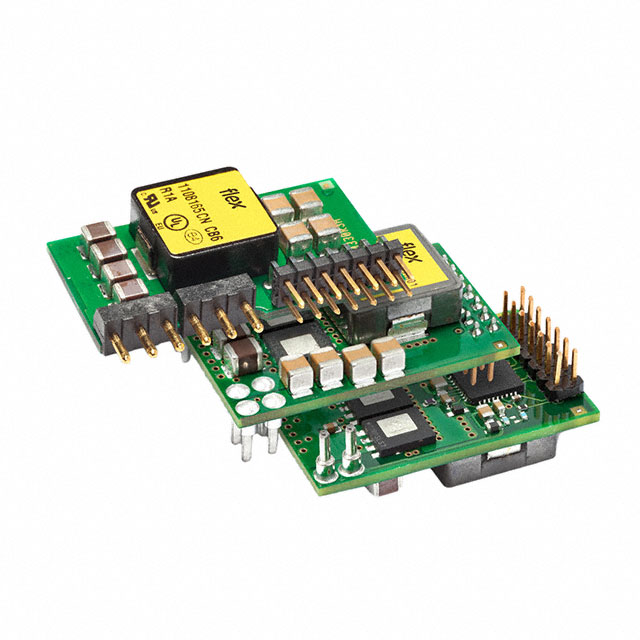

BMR464 Series
Manufacturer: Flex Power Modules
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER 0.6-3.3V 132W
| Part | Voltage - Output 1 (Min) | Voltage - Output 1 (Max) | Mounting Type | Size / Dimension Width | Size / Dimension Height | Size / Dimension Length | Package / Case | Approval Agency | Efficiency | Power (Watts) | Features | Control Features | Applications | Type | Voltage - Input (Max) | Number of Outputs | Standard Number | Current - Output (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Input (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 0.6 V | 3.3 V | Surface Mount | 0.79 in | 0.32 in | 1.21 in | 20-SMD Module | CB CSA IEC TUV UL | 95.3 % | 132 W | Adjustable Output PMBus™ Remote On/Off Remote Sense | Active High Enable | ITE (Commercial) | Digital Non-Isolated PoL Module | 14 V | 1 | 62368-1 | 40 A | -40 °C | 125 °C | 4.5 V |
Flex Power Modules | 0.6 V | 3.3 V | Through Hole | 0.3 in | 0.71 in | 1.3 in | 20-SIP Module | CB CSA IEC TUV UL | 95.3 % | 165 W | Adjustable Output PMBus™ Remote On/Off Remote Sense | Active High Enable | ITE (Commercial) | Digital Non-Isolated PoL Module | 14 V | 1 | 62368-1 | 50 A | -40 °C | 125 °C | 4.5 V |
Flex Power Modules | 0.6 V | 3.3 V | Through Hole | 0.79 in | 0.32 in | 1.21 in | 20-DIP Module | CB CSA IEC TUV UL | 95.3 % | 132 W | Adjustable Output PMBus™ Remote On/Off Remote Sense | Active High Enable | ITE (Commercial) | Digital Non-Isolated PoL Module | 14 V | 1 | 62368-1 | 40 A | -40 °C | 125 °C | 4.5 V |
Flex Power Modules | 0.6 V | 3.3 V | Surface Mount | 0.79 in | 0.32 in | 1.21 in | 20-SMD Module | CB CSA IEC TUV UL | 95.7 % | 165 W | Adjustable Output PMBus™ Remote On/Off Remote Sense | Active High Enable | ITE (Commercial) | Digital Non-Isolated PoL Module | 14 V | 1 | 62368-1 | 50 A | -40 °C | 125 °C | 4.5 V |
Flex Power Modules | 0.6 V | 3.3 V | Through Hole | 0.3 in | 0.71 in | 1.3 in | 20-SIP Module | CB CSA IEC TUV UL | 95.5 % | 132 W | Adjustable Output PMBus™ Remote On/Off Remote Sense | Active High Enable | ITE (Commercial) | Digital Non-Isolated PoL Module | 14 V | 1 | 62368-1 | 40 A | -40 °C | 125 °C | 4.5 V |
Flex Power Modules | 0.6 V | 3.3 V | Through Hole | 0.79 in | 0.32 in | 1.21 in | 20-DIP Module | CB CSA IEC TUV UL | 95.7 % | 165 W | Adjustable Output PMBus™ Remote On/Off Remote Sense | Active High Enable | ITE (Commercial) | Digital Non-Isolated PoL Module | 14 V | 1 | 62368-1 | 50 A | -40 °C | 125 °C | 4.5 V |
