470127CY Series

Catalog

CABLE 12CON 19AWG CLR SHLD 100M

Part	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Wire Gauge	Number of Conductors	Shield Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [diameter]	Cable Type	Usage	Length [x]	Length [x]	Length	Length

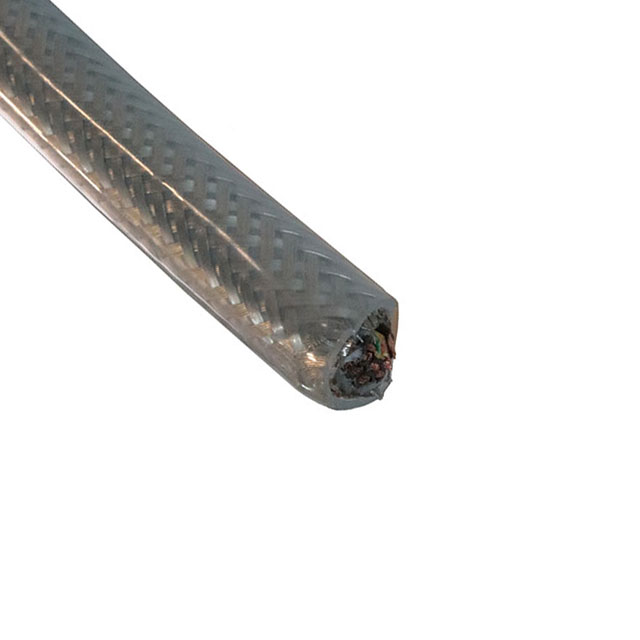

ALPHA WIRE 470127CY CL033	80 %	Poly-Vinyl Chloride (PVC)	0.512 in	13.01 mm	Clear	Copper Tinned	19 AWG	12	Braid	Copper Bare	1.199 mm	0.0472 in	Chemical Resistant Oil Resistant UV Resistant	300 VDC	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	30	0.007 in	Multi-Conductor	Industrial	328.1 ft	100 m
ALPHA WIRE 470127CY CL432	80 %	Poly-Vinyl Chloride (PVC)	0.512 in	13.01 mm	Clear	Copper Tinned	19 AWG	12	Braid	Copper Bare	1.199 mm	0.0472 in	Chemical Resistant Oil Resistant UV Resistant	300 VDC	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	30	0.007 in	Multi-Conductor	Industrial	98.43 ft 984.3 ft	30 m 300 m	1 m 20 m	3.28 ft 65.62 ft

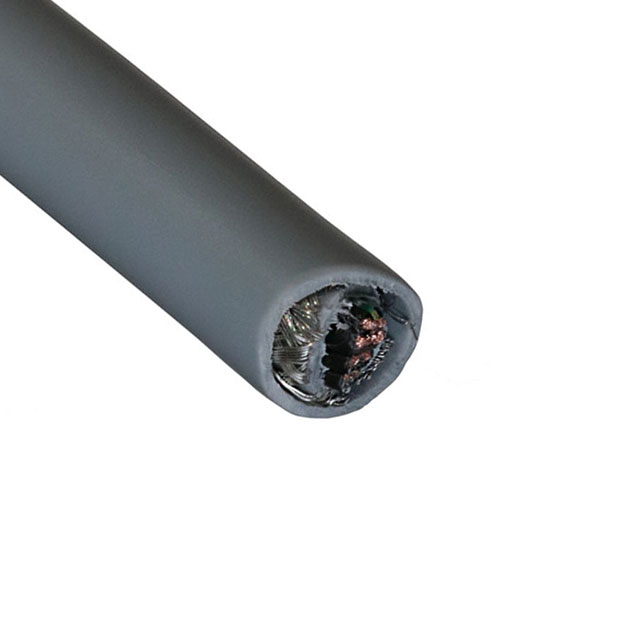

ALPHA WIRE 470127CY GE432	80 %	Poly-Vinyl Chloride (PVC)	0.512 in	13.01 mm	Gray	Copper Tinned	19 AWG	12	Braid	Copper Bare	1.199 mm	0.0472 in	Chemical Resistant Oil Resistant UV Resistant	300 VDC	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	30	0.007 in	Multi-Conductor	Industrial	98.43 ft	30 m	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft
