BFB0524 Series

Catalog

FAN BLOWER 51.3X15MM 24VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Blade	Material - Frame	Current Rating (Amps)	Fan Type	Width [y]	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	RPM	Weight	Weight	Air Flow	Air Flow	Static Pressure	Static Pressure	Voltage - Rated	Bearing Type	Termination	Features

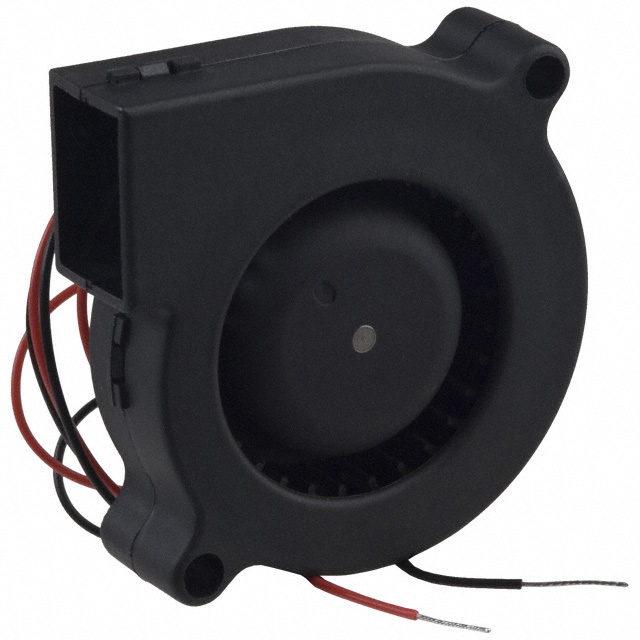

Delta Electronics BFB0524HH	27.6 VDC	14	40 °C 50000 Hrs	Plastic	Plastic	110 mA	Blower	15 mm	45 dB(A)	70 °C	-10 °C	2.64 W	CE CSA UL VDE	51.3 mm	51 mm	Square/Rounded	6500 RPM	0.062 lb	28.12 g	0.129 m³/min	4.6 CFM	215.7 Pa	0.866 in H2O	24 VDC	Ball	2 Wire Leads
Delta Electronics BFB0524HH-F00	27.6 VDC	14	40 °C 50000 Hrs	Plastic	Plastic	110 mA	Blower	15 mm	45 dB(A)	70 °C	-10 °C	2.64 W	CE CSA UL VDE	51.3 mm	51 mm	Square/Rounded	6500 RPM	0.062 lb	28.12 g	0.129 m³/min	4.6 CFM	215.7 Pa	0.866 in H2O	24 VDC	Ball	3 Wire Leads	Speed Sensor (Tach)
Delta Electronics BFB0524H-R00	27.6 VDC	14	40 °C 50000 Hrs	Plastic	Plastic	0.09 A	Blower	15 mm	38 dB(A)	70 °C	-10 °C	2.16 W	CE CSA UL VDE	51.3 mm	51 mm	Square/Rounded	5500 RPM	0.062 lb	28.12 g	0.109 m³/min	3.9 CFM			24 VDC	Ball	3 Wire Leads	Locked Rotor Sensor
