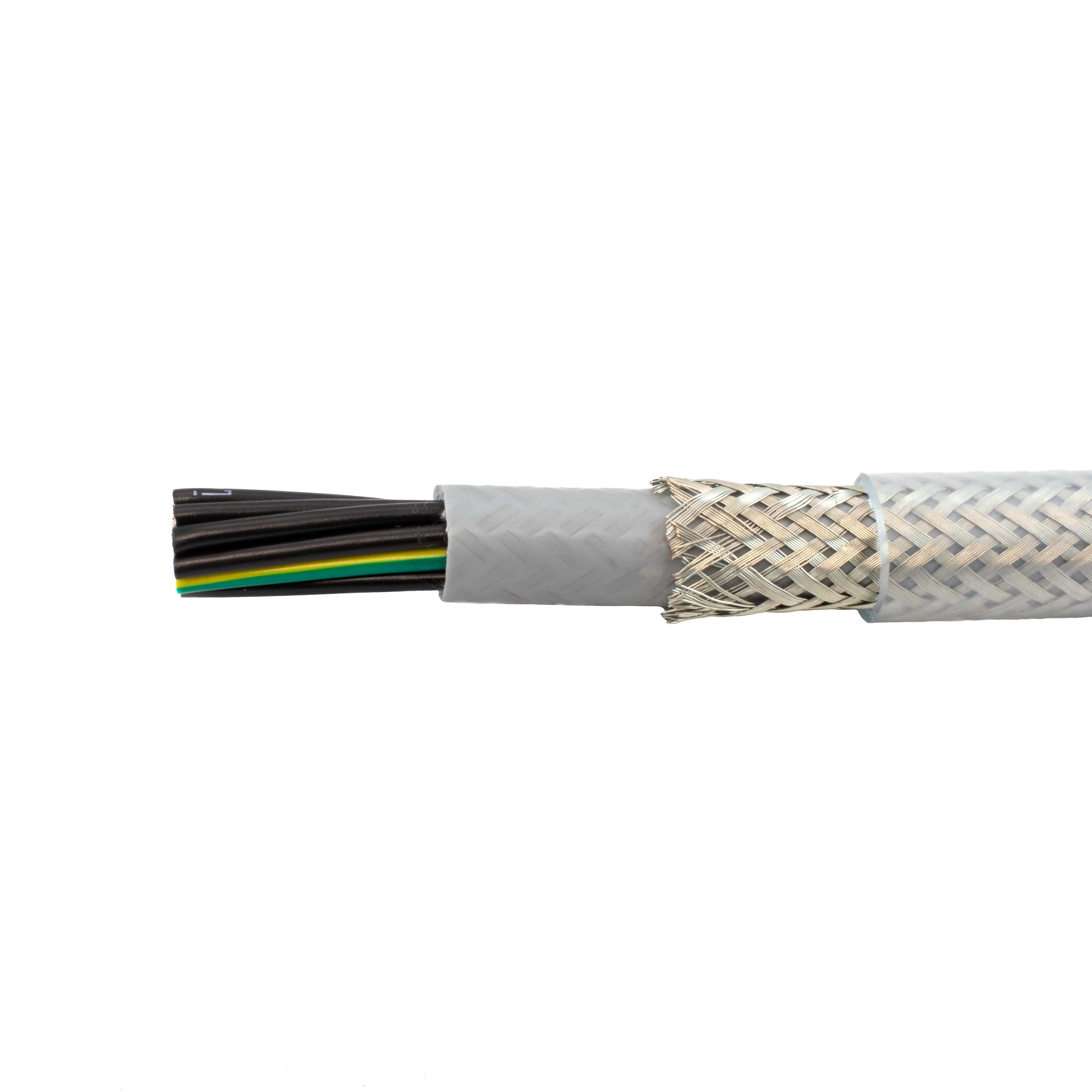

470031CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

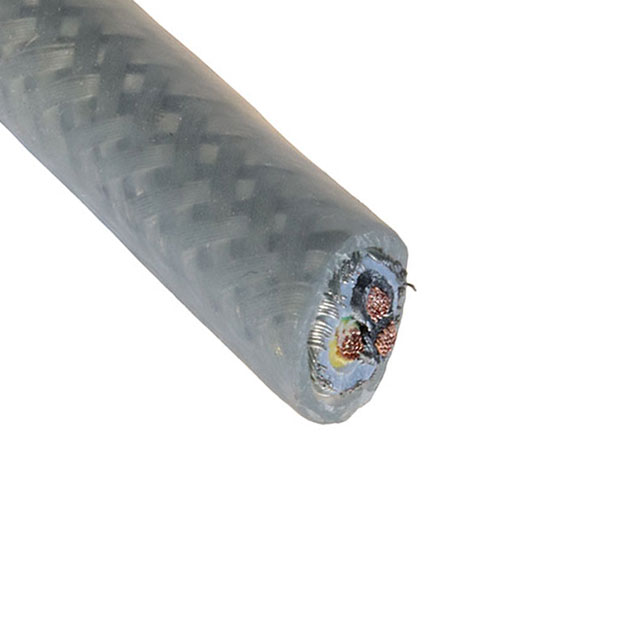

CABLE 3COND 17AWG CLEAR SHLD 10M
| Part | Shield Type | Features | Conductor Material | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Conductor Insulation | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Shield Material | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Spool Size | Spool Size | Wire Gauge | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Braid | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 98.43 ft | 30 m | 80 °C | -40 C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Industrial | 0.328 in | 8.33 mm | 300 VDC | Clear | Copper Tinned | Enter Number of Meters in Order Quantity | 0.0354 in | 0.9 mm | 10 m | 32.81 ft | 80 % | 0.0079 " | 30 | Poly-Vinyl Chloride (PVC) | 984.3 ft | 300 m | 17 AWG | 3 |
ALPHA WIRE | Braid | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 80 °C | -40 C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Industrial | 0.328 in | 8.33 mm | 300 VDC | Clear | Copper Tinned | 0.0354 in | 0.9 mm | 50 m | 164 ft | 80 % | 0.0079 " | 30 | Poly-Vinyl Chloride (PVC) | 17 AWG | 3 | |||||
 ALPHA WIRE | Braid | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 98.43 ft | 30 m | 80 °C | -40 C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Industrial | 0.328 in | 8.33 mm | 300 VDC | Gray | Copper Tinned | 0.0354 in | 0.9 mm | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft | 80 % | 0.0079 " | 30 | Poly-Vinyl Chloride (PVC) | 17 AWG | 3 |
