FGB.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Material	Orientation	Current Rating (Amps)	Color	Ingress Protection	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Shell Finish	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Insert Material	Features	Shell Size - Insert	Number of Positions	Shell Material	Shielding	Connector Type	Fastening Type	Termination	Shell Size - Insert [custom]	Cable Opening [Min]	Cable Opening [Max]
LEMO FGB.1B.305.CLAD52Z	39.4 µin	1 µm	Brass	B	9 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	305	5	Brass	Shielded	Plug Male Pins	Push-Pull
LEMO FGB.1B.304.CYCD62Z	39.4 µin	1 µm	Brass	B	10 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.244 "	5.2 mm	6.2 mm	0.205 in	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	304	4	Brass	Shielded	Plug Male Pins	Push-Pull	Crimp
LEMO FGB.1B.307.CLAD62Z	39.4 µin	1 µm	Brass	B	7 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.244 "	5.2 mm	6.2 mm	0.205 in	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell		7	Brass	Shielded	Plug Male Pins	Push-Pull		307

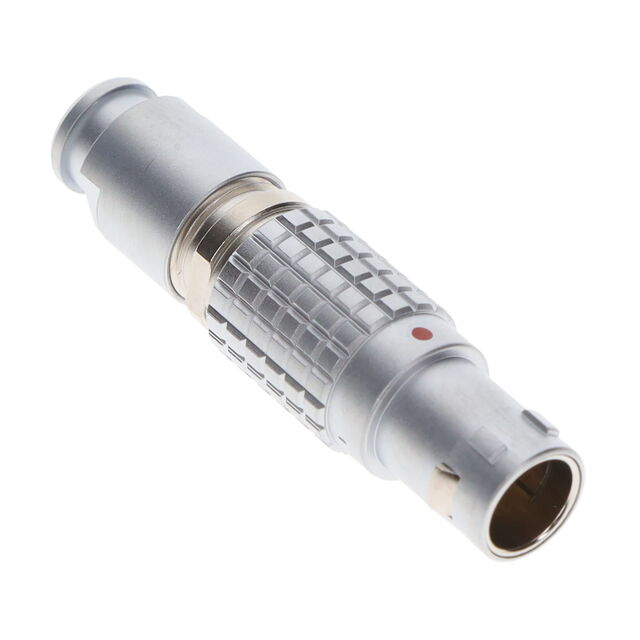

LEMO FGB.1B.308.CLAD62Z	39.4 µin	1 µm	Brass	B	5 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.244 "	5.2 mm	6.2 mm	0.205 in	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	308	8	Brass	Shielded	Plug Male Pins	Push-Pull
LEMO FGB.1B.314.CLAD72Z	39.4 µin	1 µm	Brass	B	2 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal		6.2 mm	7.2 mm		Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	314	14	Brass	Shielded	Plug Male Pins	Push-Pull			0.244 in	0.283 in
LEMO FGB.1B.305.CLAD52	39.4 µin	1 µm	Brass	B	9 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	305	5	Brass	Shielded	Plug Male Pins	Push-Pull
LEMO FGB.1B.308.CLAD62	39.4 µin	1 µm	Brass	B	5 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.244 "	5.2 mm	6.2 mm	0.205 in	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	308	8	Brass	Shielded	Plug Male Pins	Push-Pull
LEMO FGB.1B.302.CLAD42	39.4 µin	1 µm	Brass	B	15 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.165 in	3.1 mm	4.2 mm	0.122 in	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	302	2	Brass	Shielded	Plug Male Pins	Push-Pull
LEMO FGB.1B.305.CLAD42Z	39.4 µin	1 µm	Brass	B	9 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.165 in	3.1 mm	4.2 mm	0.122 in	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	305	5	Brass	Shielded	Plug Male Pins	Push-Pull
LEMO FGB.1B.308.CLAD52	39.4 µin	1 µm	Brass	B	5 A	Silver	IP50 - Dust Protected	Brass Chrome	-55 C	250 °C	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Chrome	UL94 V-0	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Backshell	308	8	Brass	Shielded	Plug Male Pins	Push-Pull
