PGC36 Series

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Termination	Style	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Insulation Color	Overall Contact Length [x]	Overall Contact Length [x]	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Contact Material	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Type	Fastening Type	Contact Shape	Contact Finish - Post

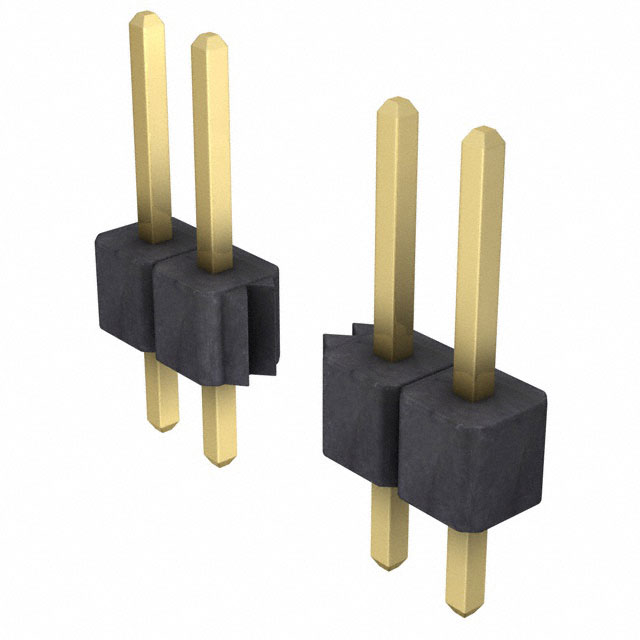

Sullins Connector Solutions PGC36SAAN	0.127 µm	5 µin	Header	0.1 in	2.54 mm	0.1 "	2.54 mm	Solder	Board to Board Cable	Unshrouded	0.25 µm	10 µin	Through Hole	36	Black	11.43 mm	0.45 in	3 A	UL94 V-0	All	Gold	Copper Alloy	1	0.23 in	5.84 mm	3.05 mm	0.12 in	Polyester Thermoplastic	Male Pin	Push-Pull	Square	Gold
