51S107 Series
Manufacturer: Rosenberger
Beta
⌘K

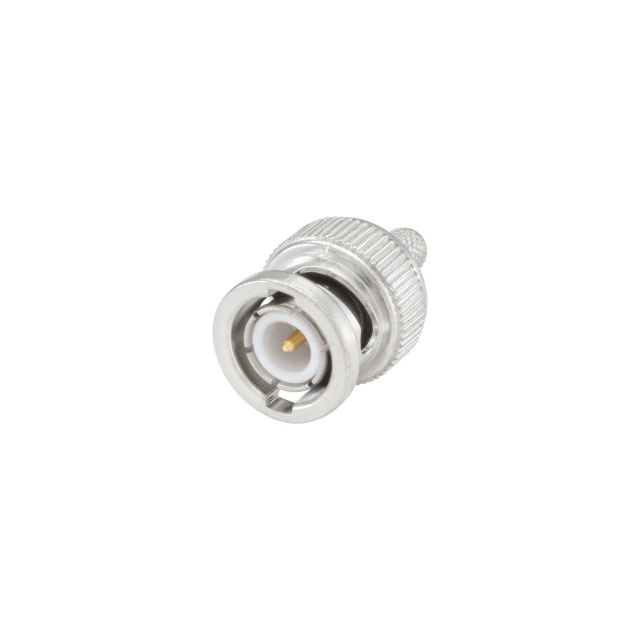

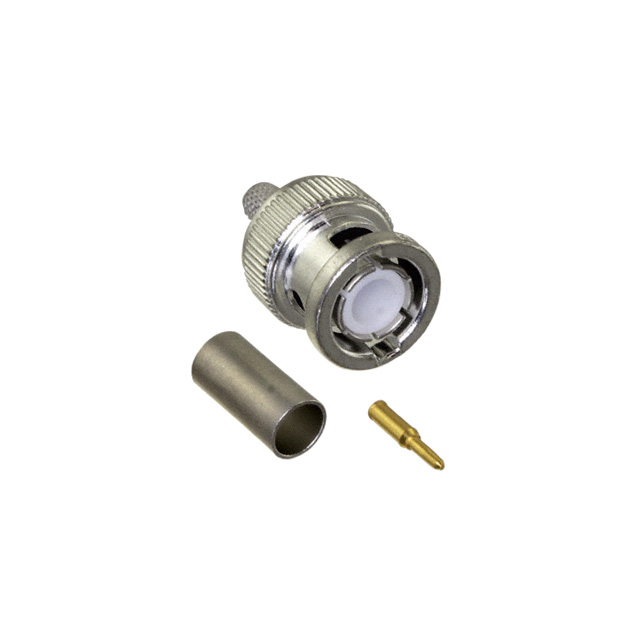

CONN BNC PLUG STR 50OHM CRIMP
| Part | Includes | Body Finish | Voltage Rating | Body Material | Mating Cycles | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Connector Type | Impedance | Housing Color | Contact Termination | Shield Termination | Center Contact Material | Connector Style | Frequency - Max [Max] | Mounting Type | Fastening Type | Cable Group | Cable Group | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Connector 1 Contact 1 Ferrule | White Bronze | 400 V | Brass | 500 | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Gold | Plug Male Pin | 50 Ohms | Silver | Crimp | Crimp | Brass | BNC | 10 GHz | Free Hanging (In-Line) | Bayonet Lock | 223 400 | RG-142B | 1 |
 Rosenberger | 1 Connector 1 Contact 1 Ferrule | White Bronze | 400 V | Brass | 500 | Polytetrafluoroethylene (PTFE) | 85 °C | -45 °C | Gold | Plug Male Pin | 50 Ohms | Silver | Crimp | Crimp | Bronze | BNC | 10 GHz | Free Hanging (In-Line) | Bayonet Lock | 196A RG-178B | 1 |
