2314867 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

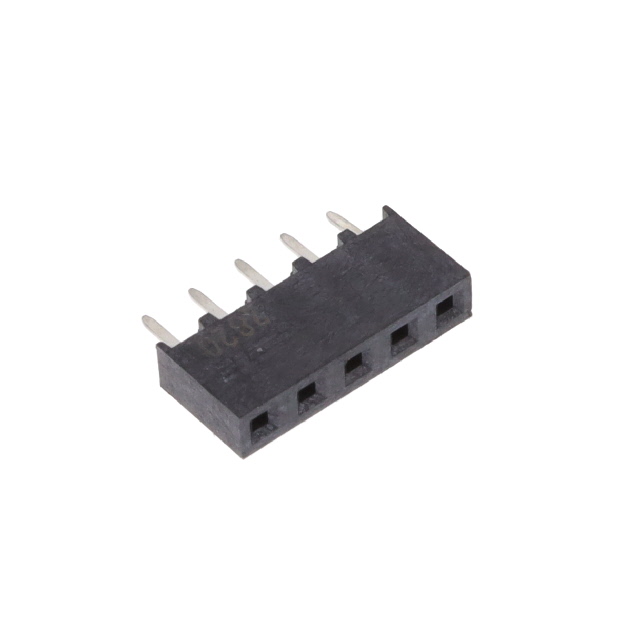

5P,2MM,BB,REC,SRVT,2.0,SN,TUBE W
| Part | Number of Rows | Mounting Type | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish - Post | Connector Type | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Termination | Material Flammability Rating | Contact Material | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating [x] | Pitch - Mating [x] | Contact Type | Insulation Material | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Shape | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Through Hole | 0.079 " | 2 mm | -40 °C | 105 ░C | Push-Pull | Tin | Receptacle | 2 A | 0.3 µm | 12 µin | 125 VDC | Solder | UL94 V-0 | Phosphor Bronze | Black | 118.1 µin | 3 µm | 0.079 in | 2 mm | Female Socket | Liquid Crystal Polymer (LCP) | All | 0.177 in | 4.5 mm | Square | Pick and Place |
