77313 Series

Catalog

CONN HEADER VERT 24POS 2.54MM

...

Part	Material Flammability Rating	Shrouding	Overall Contact Length	Overall Contact Length	Contact Material	Insulation Material	Contact Finish - Mating	Termination	Number of Rows	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating	Fastening Type	Insulation Height	Insulation Height	Contact Shape	Connector Type	Number of Positions	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Contact Length - Mating [custom]	Contact Length - Mating [custom]

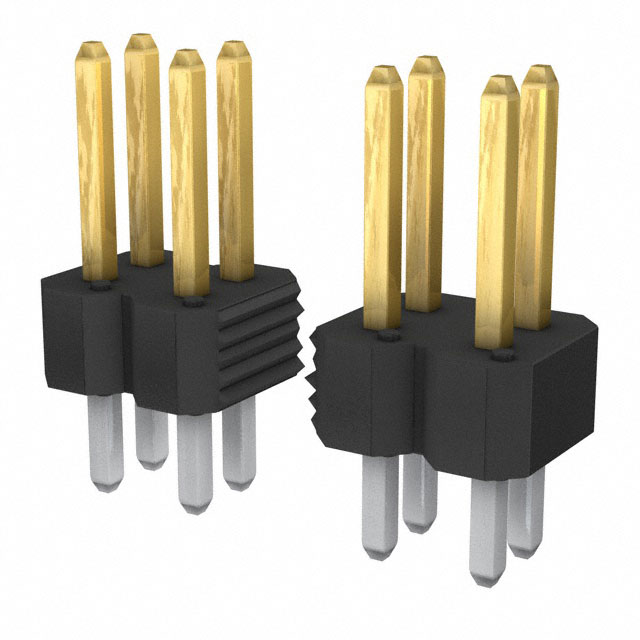

Amphenol ICC (FCI) 77313-118-24LF	UL94 V-0	Unshrouded	0.45 "	11.43 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black	0.23 in	5.84 mm	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	24	Tin	Through Hole	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C
Amphenol ICC (FCI) 77313-802-58LF	UL94 V-0	Unshrouded	0.465 in	11.81 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black	0.23 in	5.84 mm	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	58	Tin	Through Hole	15 µin	0.38 µm	Male Pin	0.1 in	2.54 mm	0.135 in	3.43 mm	2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C

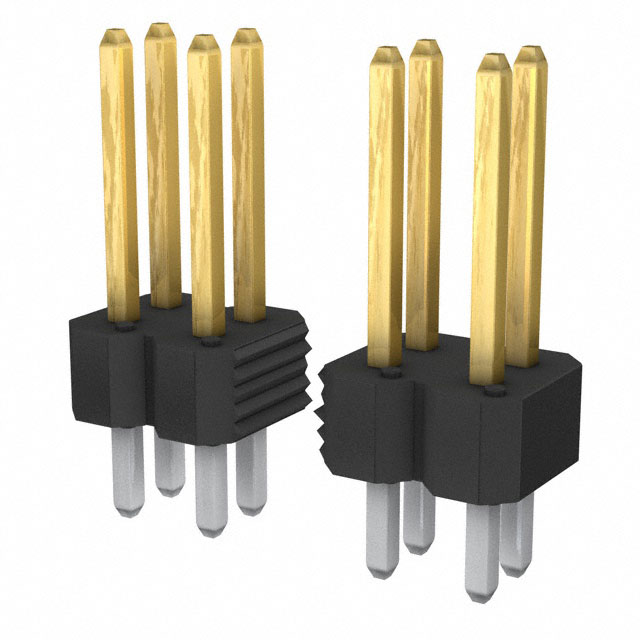

Amphenol ICC (FCI) 77313-222-40LF	UL94 V-0	Unshrouded	0.526 in	13.35 mm	Phosphor Bronze	Thermoplastic	Gold GXT™	Solder	2	Black		0.305 in	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	40	Tin	Through Hole	50 µin	1.27 µm	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	2 çm	78.7 çin	All		2.54 mm	0.1 in	Board to Board Cable			7.75 mm

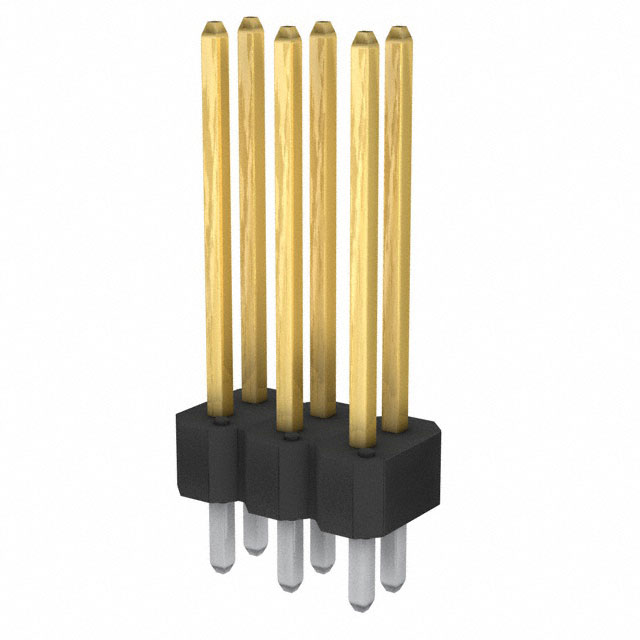

Amphenol ICC (FCI) 77313-119-06	UL94 V-0	Unshrouded		18.4 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black		12.83 mm	Push-Pull	0.1 in	2.54 mm	Square	Header	6	Tin	Through Hole	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm			2 çm	78.7 çin	All		2.54 mm	0.1 in	Board to Board Cable				0.505 in	3.02 mm	0.119 in	0.724 in
Amphenol ICC (FCI) 77313-122-40LF	UL94 V-0	Unshrouded	0.526 in	13.35 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black		0.305 in	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	40	Tin	Through Hole	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C	7.75 mm

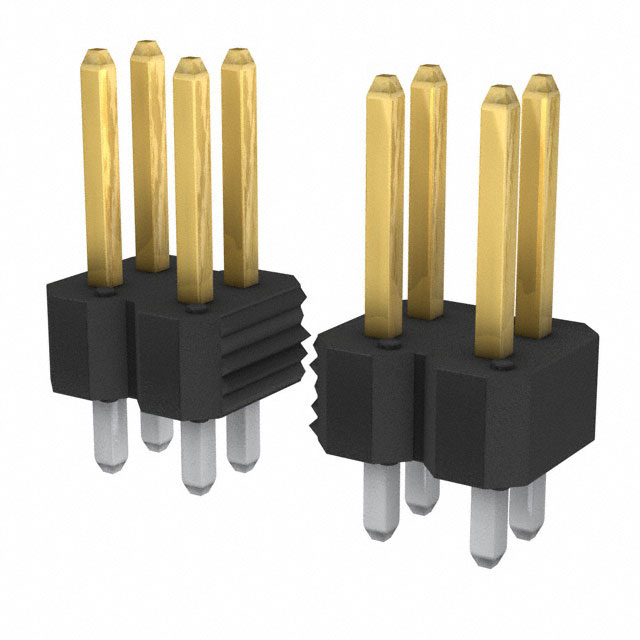

Amphenol ICC (FCI) 77313-101-24	UL94 V-0	Unshrouded			Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black	0.23 in	5.84 mm	Push-Pull	0.1 in	2.54 mm	Square	Header	24	Tin	Through Hole	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm	0.095 in	2.41 mm	2 çm	78.7 çin	All		2.54 mm	0.1 in	Board to Board Cable

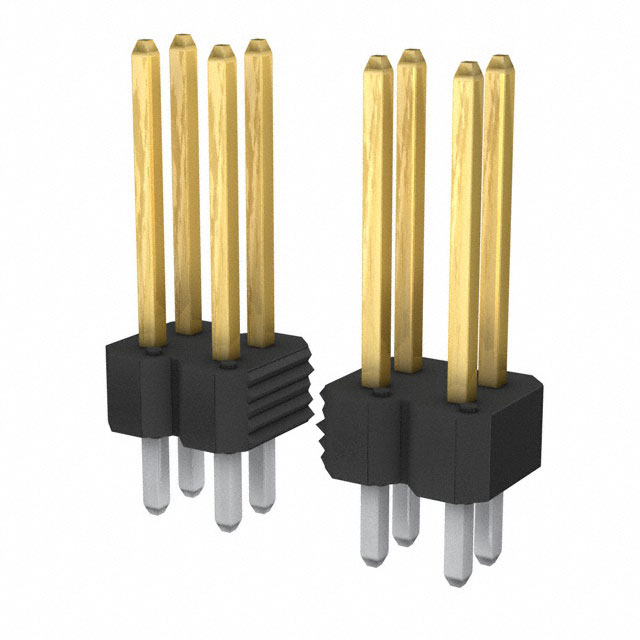

Amphenol ICC (FCI) 77313-152-60LF	UL94 V-0	Unshrouded	0.594 in	15.09 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black		9.5 mm	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	60	Tin	Through Hole	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C		0.374 in

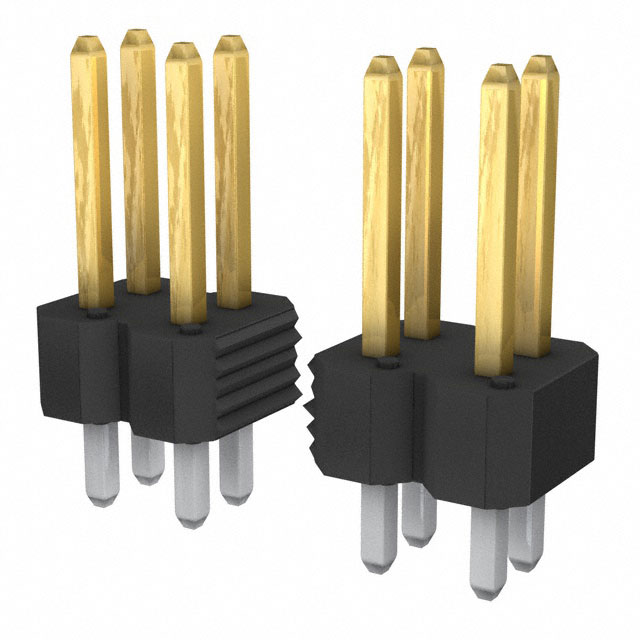

Amphenol ICC (FCI) 77313-827-32LF	UL94 V-0	Unshrouded	0.465 in	11.81 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black			Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header		Tin	Through Hole	15 µin	0.38 µm	Male Pin	0.1 in	2.54 mm			2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C			2.67 mm	0.105 in		6.6 mm	0.26 in

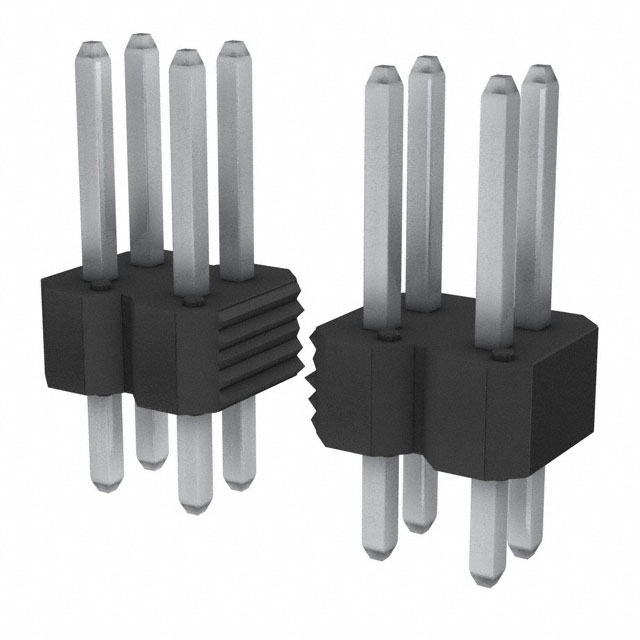

Amphenol ICC (FCI) 77313-418-46LF	UL94 V-0	Unshrouded	0.45 "	11.43 mm	Phosphor Bronze	Thermoplastic		Solder	2	Black	0.23 in	5.84 mm	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	46	Tin	Through Hole	78.7 µin	2 µm	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C
Amphenol ICC (FCI) 77313-818-44LF	UL94 V-0	Unshrouded	0.45 "	11.43 mm	Phosphor Bronze	Thermoplastic	Gold or Gold GXT™	Solder	2	Black	0.23 in	5.84 mm	Push-Pull	0.1 in	2.54 mm	Square	Breakaway Header	44	Tin	Through Hole	15 µin	0.38 µm	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	2 çm	78.7 çin	All	3 A	2.54 mm	0.1 in	Board to Board Cable	-65 ░C	130 °C
