LGA150A Series

Switching Power Supplies 150W 24V 6.3A VH(J.S.T.) Conn Type

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies 150W 24V 6.3A VH(J.S.T.) Conn Type

Catalog

Switching Power Supplies 150W 24V 6.3A VH(J.S.T.) Conn Type

Part	Minimum Load Required	Voltage - Output 1	Efficiency	Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Applications	Mounting Type	Current - Output 1	Number of Outputs
Cosel USA, Inc. LGA150A-24-SJ1		24 V	87 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1
Cosel USA, Inc. LGA150A-24-HJ1		24 V	87 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1
Cosel USA, Inc. LGA150A-24-HCJ1		24 V	87 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1
Cosel USA, Inc. LGA150A-24-SNJ1		24 V	87 %	Enclosed	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1
Cosel USA, Inc. LGA150A-3R3-Y		3.3 V	76 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	30 A	1
Cosel USA, Inc. LGA150A-24-J1Y		24 V	87 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1
Cosel USA, Inc. LGA150A-24-HJ1Y		24 V	87 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1
Cosel USA, Inc. LGA150A-24-SNY		24 V	87 %	Enclosed	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1

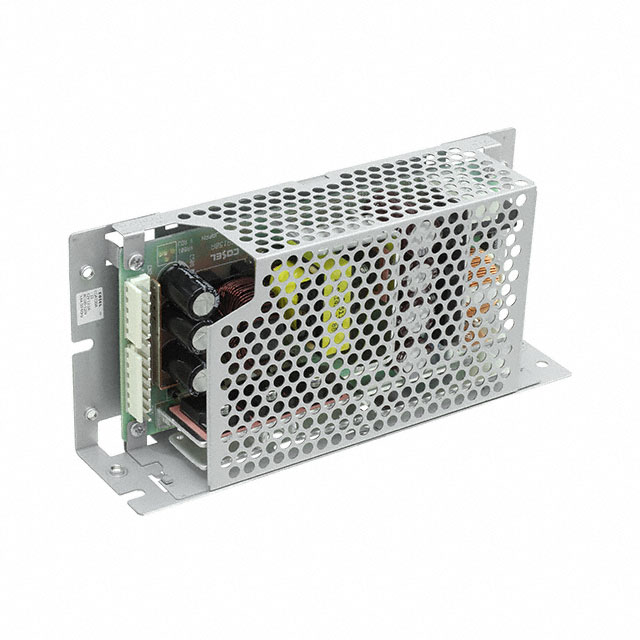

Cosel USA, Inc. LGA150A-24-SN		24 V	87 %	Enclosed	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	6.3 A	1

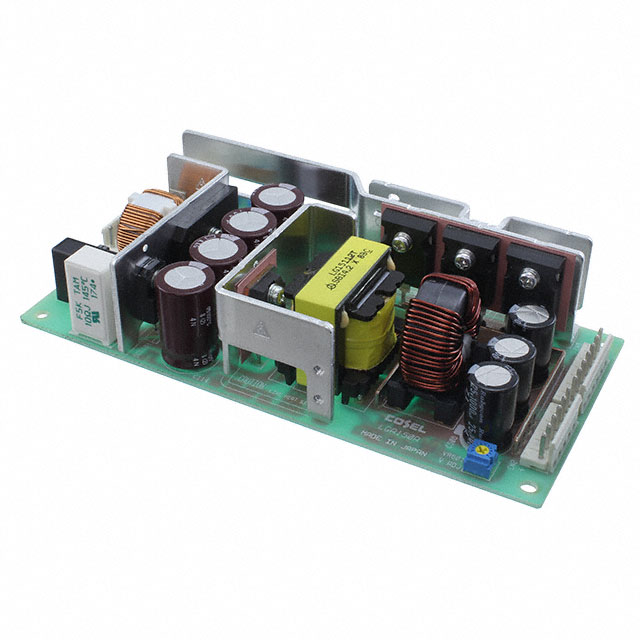

Cosel USA, Inc. LGA150A-12-Y		12 V	84.5 %	Open Frame	85 VAC	132 VAC	74.9 mm	39.1 mm	1.54 in	160 mm	6.3 in	2.95 "	-10 °C	60 °C	CE cURus TUV	2000 V	ITE (Commercial)	Chassis Mount	12.5 A	1
