1742785 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

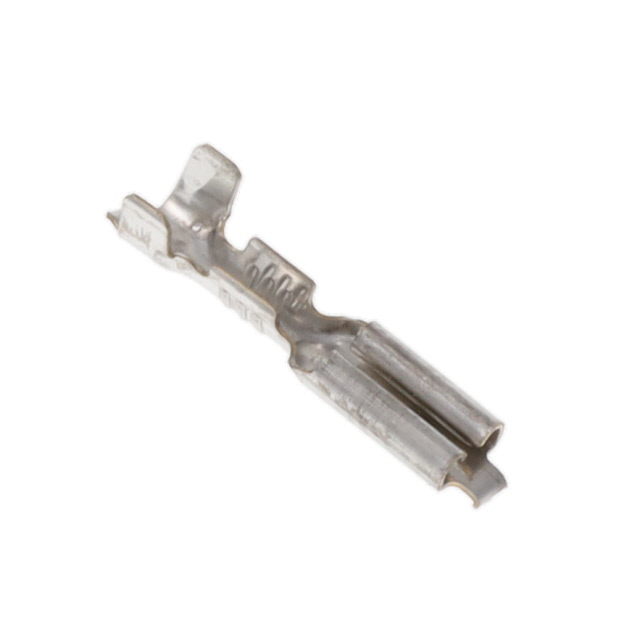

110 FAST RCPT 18-22 010PTPBR
| Part | Tab Width | Tab Width | Contact Material | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Insulation | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Mounting Type | Terminal Type | Length - Overall [x] | Length - Overall [x] | Tab Length | Tab Length | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2.79 mm | 0.11 " | Brass | 0.02 " | 0.51 mm | 22 AWG | 17.5 AWG | Female | Non-Insulated | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Free Hanging (In-Line) | Standard | 0.635 in | 16.13 mm | 6.35 mm | 0.25 in | Crimp |
