4694R Series
Manufacturer: Belden Inc.
Beta
⌘K

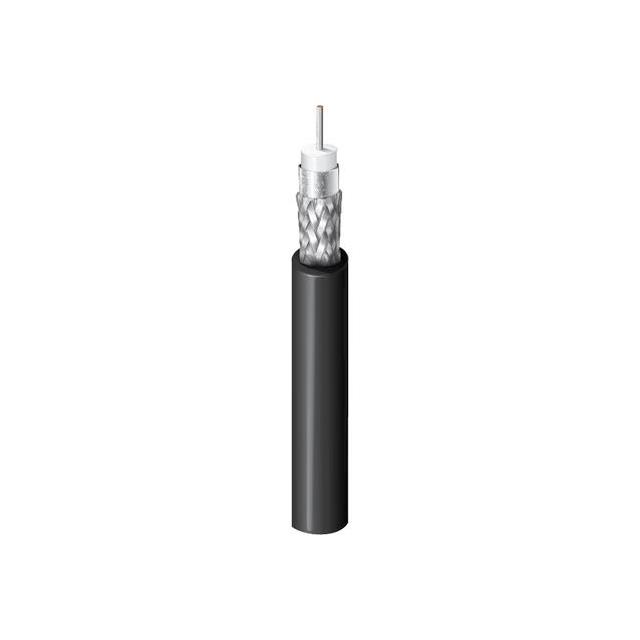

CBL COAX RISER RG-6 18AWG 1000'
| Part | VoP, Velocity of Propagation | Shield Coverage | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Length [x] | Length [x] | Shield Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Cable Group | Cable Type | Usage | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 | 95 % 100 % | Aluminum Polyester Copper Tinned | 0.18 in | 4.57 mm | Copper Silver Coated | 304.8 m | 1000 ft | Braid Foil | 18 AWG | 0.274 in | 6.96 mm | Orange | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial - Riser | Video | Solid |
Belden Inc. | 85 | 95 % 100 % | Aluminum Polyester Copper Tinned | 0.18 in | 4.57 mm | Copper Silver Coated | 304.8 m | 1000 ft | Braid Foil | 18 AWG | 0.274 in | 6.96 mm | Red | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial - Riser | Video | Solid |
Belden Inc. | 85 | 95 % 100 % | Aluminum Polyester Copper Tinned | 0.18 in | 4.57 mm | Copper Silver Coated | Braid Foil | 18 AWG | 0.274 in | 6.96 mm | Black | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial - Riser | Video | Solid | ||
Belden Inc. | 85 | 95 % 100 % | Aluminum Polyester Copper Tinned | 0.18 in | 4.57 mm | Copper Silver Coated | 304.8 m | 1000 ft | Braid Foil | 18 AWG | 0.274 in | 6.96 mm | Blue | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial - Riser | Video | Solid |
Belden Inc. | 85 | 95 % 100 % | Aluminum Polyester Copper Tinned | 0.18 in | 4.57 mm | Copper Silver Coated | 304.8 m | 1000 ft | Braid Foil | 18 AWG | 0.274 in | 6.96 mm | Yellow | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial - Riser | Video | Solid |
