2SA2126 Series

Bipolar Transistor, -50V, -3A, Low VCE(sat), PNP Single TP/TP-FA

Catalog

Bipolar Transistor, -50V, -3A, Low VCE(sat), PNP Single TP/TP-FA

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Transistor Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature

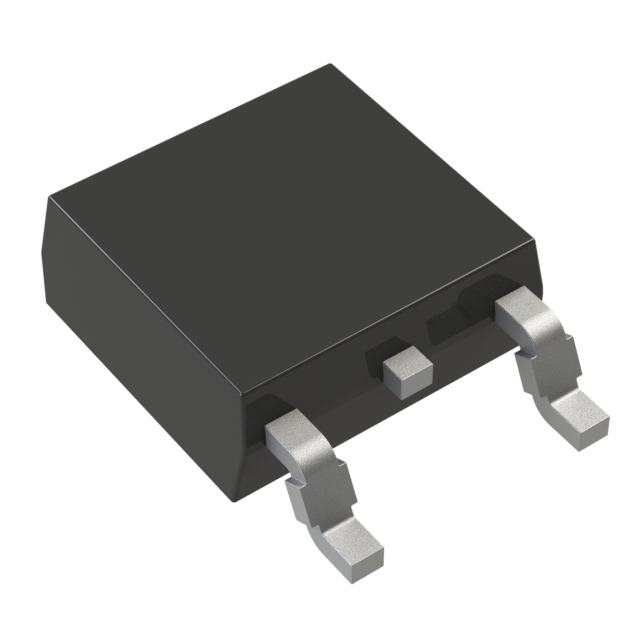

ON Semiconductor 2SA2126-TL-H	50 V	800 mW	PNP	TP-FA	3 A	Surface Mount	520 mV	390 MHz	1 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3	200	150 °C
ON Semiconductor 2SA2126-S-TL-E	50 V	800 mW	PNP	TP-FA	3 A	Surface Mount	520 mV	390 MHz	1 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3	200	150 °C
ON Semiconductor 2SA2126-E	50 V	800 mW	PNP	TP	3 A	Through Hole	520 mV	390 MHz	1 µA	IPAK TO-251-3 Short Leads TO-251AA	200	150 °C
ON Semiconductor 2SA2126-H	50 V	800 mW	PNP	TP	3 A	Through Hole	520 mV	390 MHz	1 µA	IPAK TO-251-3 Short Leads TO-251AA	200	150 °C

Catalog

Bipolar Transistor, -50V, -3A, Low VCE(sat), PNP Single TP/TP-FA

Key Features

• Adoption of MBIT processes

• High current capacitance

• Low collector-to-emitter saturation voltage

• High-speed switching

Description

2SA2126 is a Bipolar Transistor, -50V, -3A, Low VCE(sat), PNP Single TP/TP-FA for DC-DC converter applications, relay drivers, lamp drivers and motor drivers.
