292228 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER SMD R/A 12POS 1.5MM

Part	Insulation Height	Insulation Height	Contact Shape	Contact Type	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Insulation Color	Applications	Contact Material	Termination	Shrouding	Fastening Type	Number of Positions Loaded	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Material Flammability Rating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Style	Mounting Type	Connector Type	Insulation Material

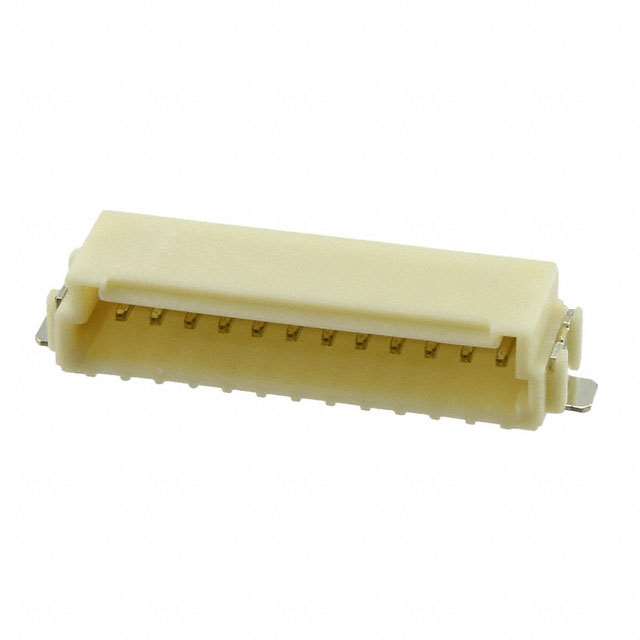

TE Connectivity Raychem Cable Protection 1-292228-2	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Beige	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	12	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 6-292228-9	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Black	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	19	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 5-292228-9	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Black	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	9	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 5-292228-2	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Black	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	2	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)

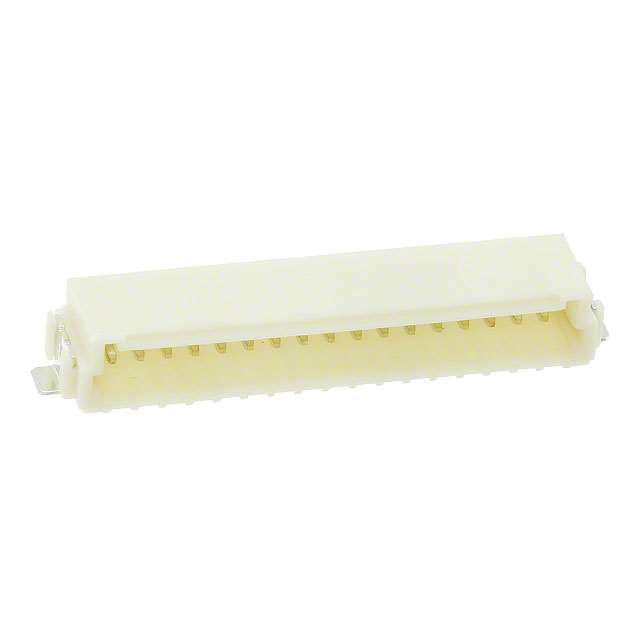

TE Connectivity Raychem Cable Protection 1-292228-7	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Beige	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1		-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 6-292228-0	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Black	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	10	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 292228-2	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Beige	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	2	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 6-292228-2	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Black	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	12	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
TE Connectivity Raychem Cable Protection 6-292228-1	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Black	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	11	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)

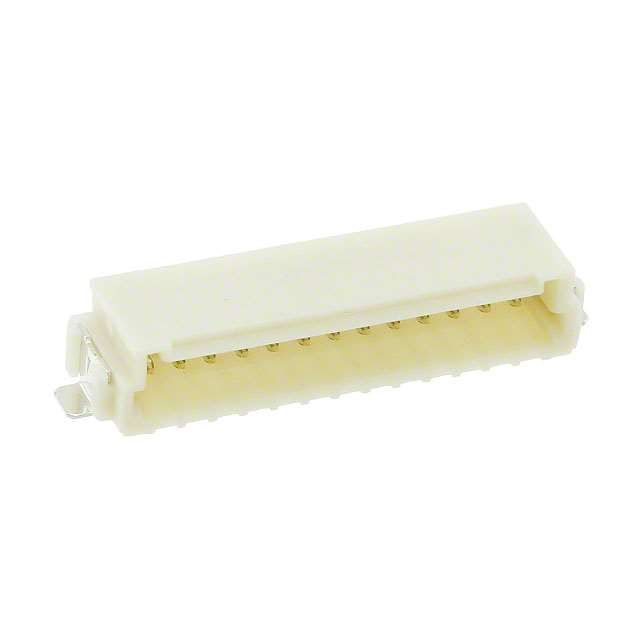

TE Connectivity Raychem Cable Protection 1-292228-3	4.9 mm	0.193 in	Square	Male Pin	Varies by Wire Gauge	Tin	50 VAC	Beige	General Purpose	Brass	Solder	Shrouded - 4 Wall	Detent Lock	All	1	13	-30 ░C	105 ░C	Solder Retention	UL94 V-0	2.4 mm	0.094 in	Board to Cable/Wire	Surface Mount Right Angle	Header	Glass Filled Nylon 6T Polyamide (PA6T)
