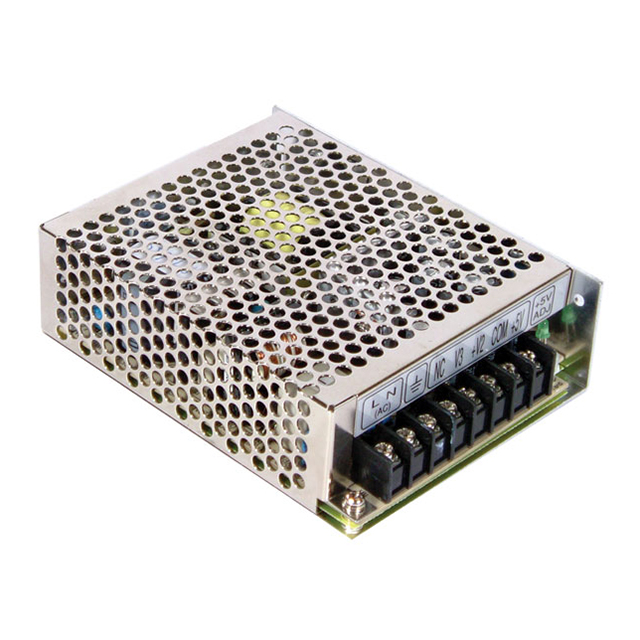

RT-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V +/-15V 66W
| Part | Minimum Load Required | Current - Output 1 | Efficiency | Type | Voltage - Isolation | Approval Agency | Voltage - Output 1 | Current - Output 2 | Current - Output 3 | Mounting Type | Power (Watts) | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 3 | Voltage - Output 2 | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 5 A | 78 % | Enclosed | 3000 V | CB CE cURus TUV | 5 V | 2.2 A | 500 mA | Chassis Mount | 66 W | 3 | 129 mm | 38 mm | 3.86 " | 5.08 " | 1.5 in | 98 mm | 70 °C | -25 °C | 88 VAC 125 VDC | 264 VAC 373 VDC | -15 V | 15 V | ITE (Commercial) | Adjustable Output Universal Input | |
MEAN WELL USA Inc. | 5 A | 77 % | Enclosed | 3000 V | CB CE cURus TUV | 5 V | 2.8 A | 500 mA | Chassis Mount | 3 | 129 mm | 38 mm | 3.86 " | 5.08 " | 1.5 in | 98 mm | 70 °C | -25 °C | 88 VAC 125 VDC | 264 VAC 373 VDC | -12 V | 12 V | ITE (Commercial) | Adjustable Output Universal Input | ||
MEAN WELL USA Inc. | 4 A | 79 % | Enclosed | 3000 V | CB CE cURus TUV | 5 V | 1.5 A | Chassis Mount | 68 W | 3 | 129 mm | 38 mm | 3.86 " | 5.08 " | 1.5 in | 98 mm | 70 °C | -25 °C | 88 VAC 125 VDC | 264 VAC 373 VDC | 12 V | 24 V | ITE (Commercial) | Adjustable Output Universal Input |
