S05B-ZES Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

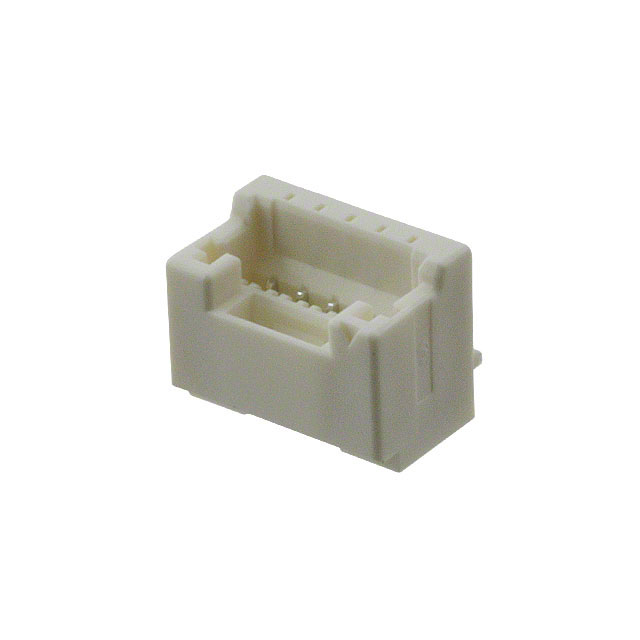

CONN HEADER R/A 5POS 1.5MM
| Part | Features | Mounting Type | Number of Positions Loaded | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Finish - Post | Insulation Color | Material Flammability Rating | Voltage Rating | Fastening Type | Insulation Material | Contact Length - Post [x] | Contact Length - Post | Style | Termination | Contact Type | Shrouding | Current Rating (Amps) | Number of Rows | Number of Positions | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board Guide | Right Angle Through Hole | All | Copper Alloy | 85 °C | -25 °C | Header | Tin | Natural | UL94 V-0 | 100 V | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.134 " | 3.4 mm | Board to Cable/Wire | Kinked Pin Solder | Outer Shroud Contact | Shrouded - 4 Wall | 2 A | 1 | 5 | Rectangular |
