C01610E012 Series

Catalog

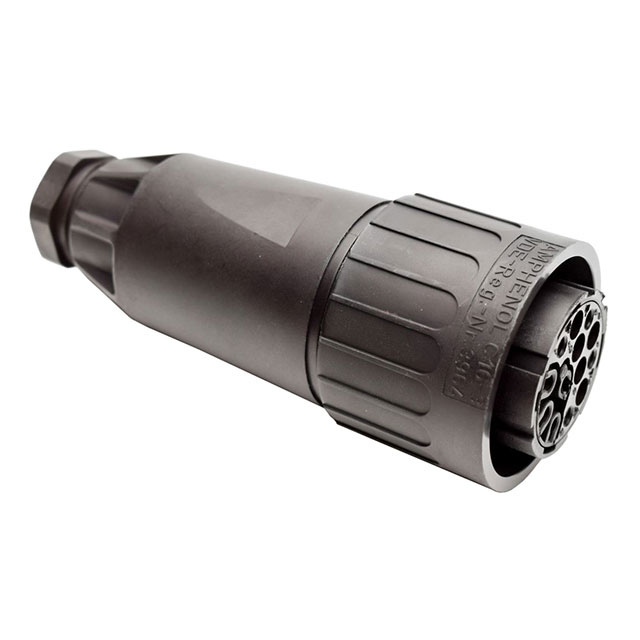

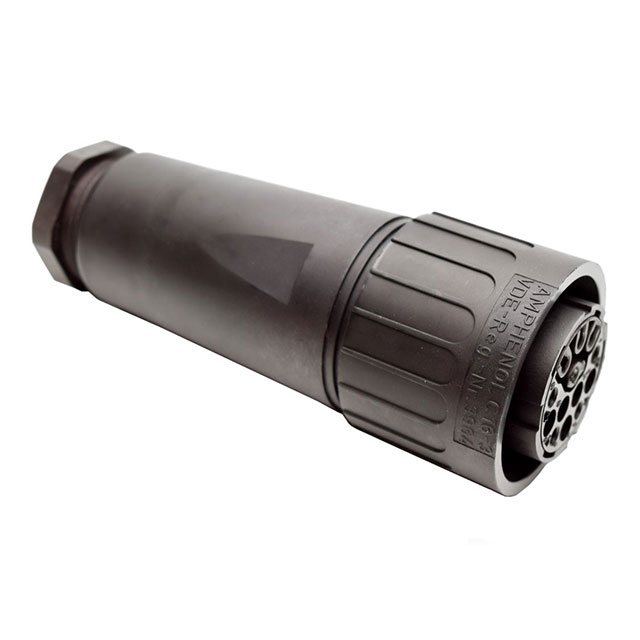

CONN PLUG HSG FMALE 13POS INLINE

Part	Contact Shape	Contact Type	Orientation	Ingress Protection	Includes	Shielding	Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Features	Shell Material	Shell Size - Insert [custom]	Connector Type	Number of Positions [custom]	Note	Mounting Type	Housing Color	Material Flammability Rating	Contact Size
Amphenol Tuchel Industrial C01610E0120032	Circular	Crimp	N (Normal)	IP65 - Dust Tight Water Resistant	1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector	Unshielded	For Female Sockets	125 °C	-40 C	Bayonet Lock	Backshell Cable Clamp Coupling Nut	Nylon 6/6 Polyamide (PA66)	2	Plug Housing	13	Contacts Not Included	Free Hanging (In-Line)	Black	UL94 V-0	1.6 mm 2.5 mm
Amphenol Tuchel Industrial C01610E0120042	Circular	Crimp	N (Normal)	IP65 - Dust Tight Water Resistant	1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector	Unshielded	For Female Sockets	125 °C	-40 C	Bayonet Lock	Backshell Cable Clamp Coupling Nut	Nylon 6/6 Polyamide (PA66)	2	Plug Housing	13	Contacts Not Included	Free Hanging (In-Line)	Black	UL94 V-0	1.6 mm 2.5 mm
Amphenol Tuchel Industrial C01610E0120052	Circular	Crimp	N (Normal)	IP65 - Dust Tight Water Resistant	1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector	Unshielded	For Female Sockets	125 °C	-40 C	Bayonet Lock	Backshell Cable Clamp Coupling Nut	Nylon 6/6 Polyamide (PA66)	2	Plug Housing	13	Contacts Not Included	Free Hanging (In-Line)	Black	UL94 V-0	1.6 mm 2.5 mm
