5342-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Termination	Mounting Hole Diameter	Mounting Hole Diameter	Tail Type	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 5342-0-15-01-35-02-10-0	-55 C	125 °C	30 Áin	0.76 Ám	0.015 "	0.38 mm	0.66 mm	0.026 in	Solder	1.3 mm	0.051 in	No Tail	0.095 in	2.41 mm	0.068 in	1.73 mm	Gold	Beryllium Copper	0.095 "	2.41 mm
Mill-Max Manufacturing Corp. 5342-0-15-80-35-84-10-0	-55 C	125 °C	100 µin	2.54 µm	0.015 "	0.38 mm	0.66 mm	0.026 in	Solder	1.3 mm	0.051 in	No Tail	0.095 in	2.41 mm	0.068 in	1.73 mm	Tin	Beryllium Copper	0.095 "	2.41 mm
Mill-Max Manufacturing Corp. 5342-0-15-15-35-14-10-0	-55 C	125 °C	10 Áin	0.25 Ám	0.015 "	0.38 mm	0.66 mm	0.026 in	Solder	1.3 mm	0.051 in	No Tail	0.095 in	2.41 mm	0.068 in	1.73 mm	Gold	Beryllium Copper	0.095 "	2.41 mm

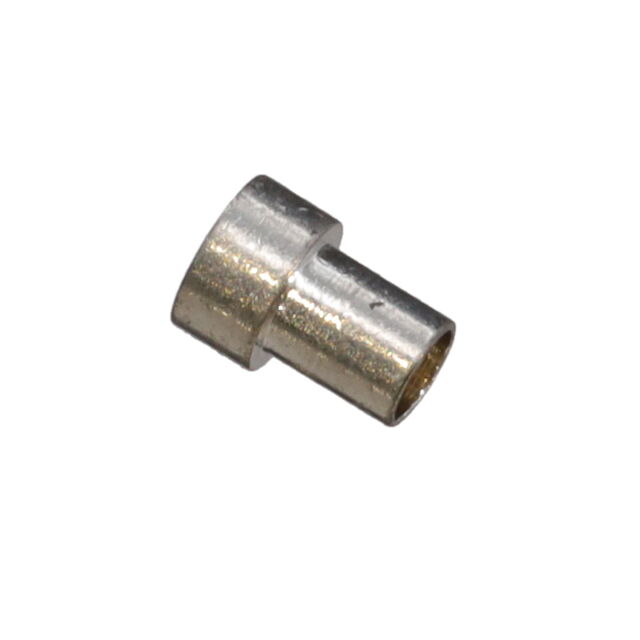

Mill-Max Manufacturing Corp. 5342-0-15-01-35-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	0.015 "	0.38 mm	0.66 mm	0.026 in	Solder	1.3 mm	0.051 in	No Tail	0.095 in	2.41 mm	0.068 in	1.73 mm	Gold	Beryllium Copper	0.095 "	2.41 mm
Mill-Max Manufacturing Corp. 5342-0-15-01-35-14-10-0	-55 C	125 °C	10 Áin	0.25 Ám	0.015 "	0.38 mm	0.66 mm	0.026 in	Solder	1.3 mm	0.051 in	No Tail	0.095 in	2.41 mm	0.068 in	1.73 mm	Gold	Beryllium Copper	0.095 "	2.41 mm
