850-002 Series

Catalog

CONN PLUG FMALE 2POS SOLDER CUP

Part	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Fastening Type	Features	Mounting Type	Shielding	Shell Finish	Voltage Rating	Shell Material	Connector Type	Shell Size - Insert	Material Flammability Rating	Color	Applications	Orientation	Number of Positions	Contact Material	Ingress Protection	Contact Finish - Mating	Primary Material	Cable Opening	Cable Opening	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
NorComp Inc. 850-002-203RSS1	Thermoplastic Polyurethane (TPU)	85 °C	-40 C	Flash	Threaded	Coupling Nut	Free Hanging (In-Line)	Shielded	Tin	60 VDC	Brass	Plug Female Sockets	M5-2	UL94 V-0	Silver	Industrial Medical	Keyed	2	Phosphor Bronze	IP67 - Dust Tight Waterproof	Gold	Metal
NorComp Inc. 850-002-103RLS1	Thermoplastic Polyurethane (TPU)	85 °C	-40 C	Flash	Threaded		Free Hanging (In-Line)	Shielded	Tin	60 VDC	Brass	Receptacle Male Pins	M5-2	UL94 V-0	Silver	Industrial Medical	Keyed	2	Brass	IP67 - Dust Tight Waterproof	Gold	Metal	3.91 mm	0.154 in

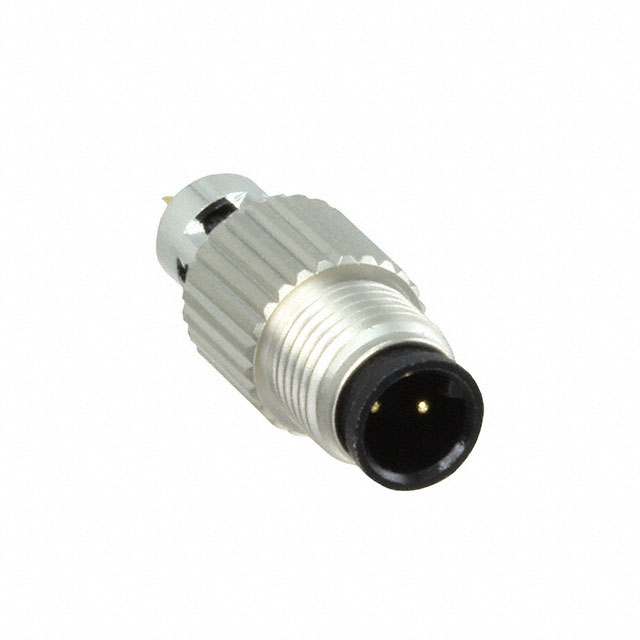

NorComp Inc. 850-002-103RLS4	Thermoplastic Polyurethane (TPU)	85 °C	-40 C		Threaded		Free Hanging (In-Line)	Shielded	Tin	60 VDC	Brass	Receptacle Male Pins	M5-2	UL94 V-0	Silver	Industrial Medical	Keyed	2	Brass	IP67 - Dust Tight Waterproof	Gold	Metal	3.91 mm	0.154 in	0.25 µm	10 µin

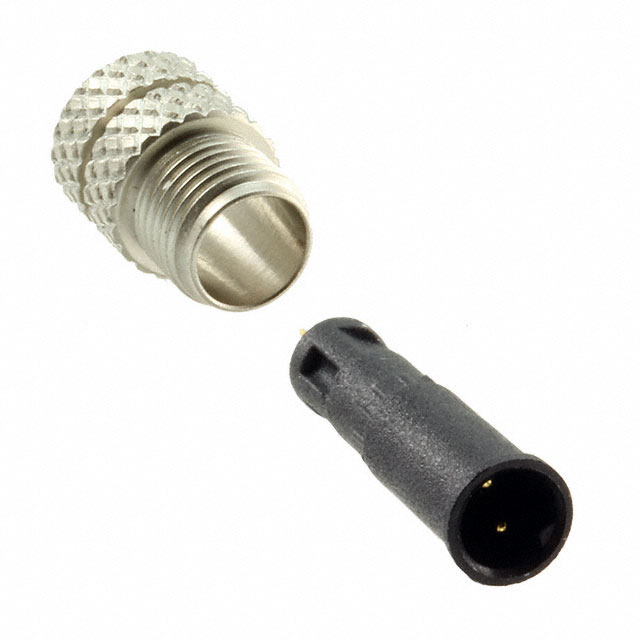

NorComp Inc. 850-002-103RLU1	Thermoplastic Polyurethane (TPU)	85 °C	-40 C	Flash	Threaded		Free Hanging (In-Line)	Unshielded	Nickel	60 VDC	Brass	Receptacle Male Pins	M5-2	UL94 V-0	Silver	Industrial Medical	Keyed	2	Brass	IP67 - Dust Tight Waterproof	Gold	Metal
