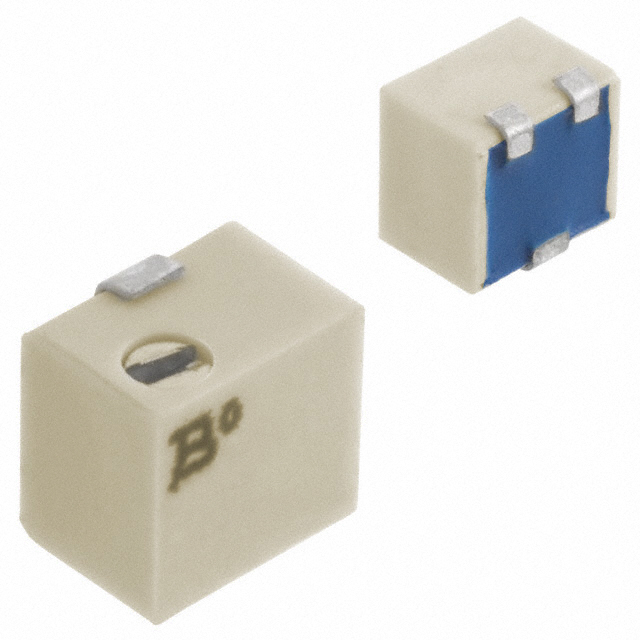

3214J Series

Catalog

TRIMMER 10KOHM 0.25W J LEAD SIDE

Part	Resistive Material	Resistance	Adjustment Type	Power (Watts)	Power (Watts)	Temperature Coefficient	Number of Turns	Mounting Type	Tolerance	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. 3214J-2-103E	Cermet	10000 Ohms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-2-503E	Cermet	50000 Ohms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-501E	Cermet	0.5 kOhms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-2-102E	Cermet	1000 Ohms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-204E	Cermet	200000 Ohms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-504E	Cermet		Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-104G	Cermet	100 kOhms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-104E	Cermet	100 kOhms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-500E	Cermet	50 Ohms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
Bourns Inc. 3214J-1-103G	Cermet	10000 Ohms	Side Adjustment	0.25 W	0.25 W	100 ppm/°C	5	Surface Mount	10 %	J Lead	0.138 in	4.8 mm	3.5 mm	0.189 "
