1871058 Series

Catalog

PCI EXPRESS CONN. EON TYPE, 64P, L=2.0

Part	Features	Card Type	Material - Insulation	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Read Out	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Color	Number of Positions	Contact Finish
TE Connectivity Raychem Cable Protection 1871058-2	Board Guide Locking Ramp	PCI Express™	Thermoplastic	Female	85 °C	-55 °C	Copper Alloy	Dual	Through Hole	0.76 Ám	30 Áin	Press-Fit	2	0.039 in	1 mm	0.062 in	1.57 mm	Black	64
TE Connectivity Raychem Cable Protection 1-1871058-4	Board Guide Locking Ramp	PCI Express™	Thermoplastic	Female	85 °C	-55 °C	Copper Alloy	Dual	Through Hole	0.76 Ám	30 Áin	Press-Fit	2	0.039 in	1 mm	0.062 in	1.57 mm	Black	164	Gold Gold-Palladium

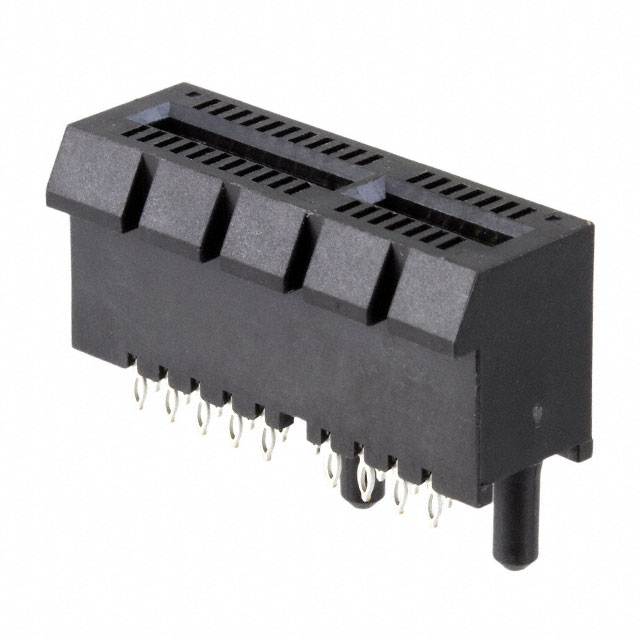

TE Connectivity Raychem Cable Protection 1871058-1	Board Guide Locking Ramp	PCI Express™	Thermoplastic	Female	85 °C	-55 °C	Copper Alloy	Dual	Through Hole	0.76 Ám	30 Áin	Press-Fit	2	0.039 in	1 mm	0.062 in	1.57 mm	Black	36
TE Connectivity Raychem Cable Protection 5-1871058-4	Board Guide Locking Ramp	PCI Express™	Thermoplastic	Female	85 °C	-55 °C	Copper Alloy	Dual	Through Hole	0.76 Ám	30 Áin	Press-Fit	2	0.039 in	1 mm	0.062 in	1.57 mm	Black	164
