B2 3/8 Series

Manufacturer: Sumitomo Electric Interconnect Products, Inc.

Catalog

HEATSHRINK 3/8" GREEN 1=1PC

Part	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Features	Shrink Temperature	Material	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Type	Spool Size [x]	Spool Size [x]	Length
Sumitomo Electric Interconnect Products, Inc. B2 3/8 GREEN 4FT	1	2	Green	0.187 in	4.75 mm	10.01 mm	0.394 in	4 ft	1.22 m	Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible

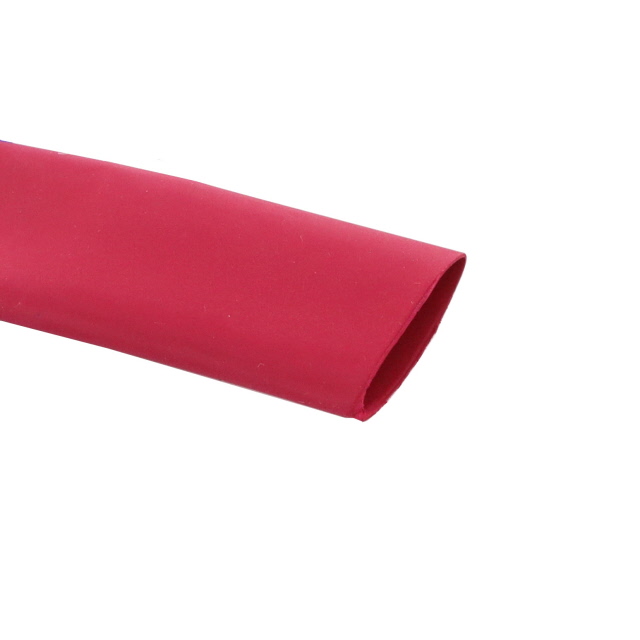

Sumitomo Electric Interconnect Products, Inc. B2 3/8 RED SPL	1	2	Red	0.187 in	4.75 mm	10.01 mm	0.394 in			Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible	200 ft	61 m	Enter Number of Feet in Order Quantity

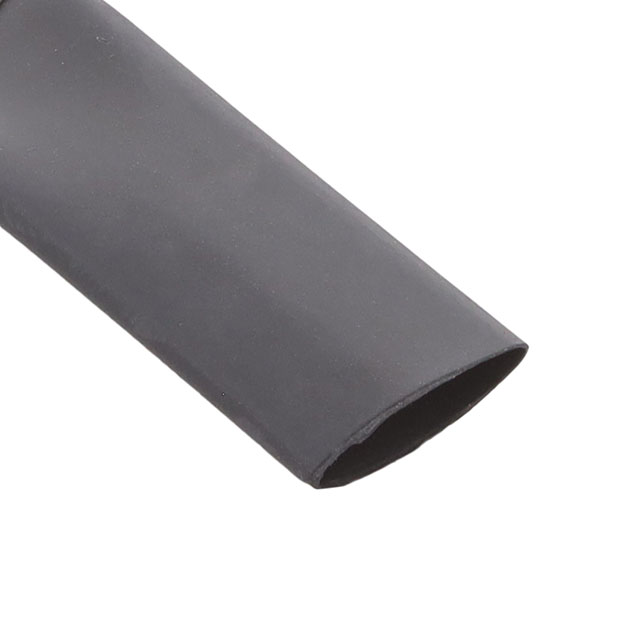

Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLACK SPL	1	2	Black	0.187 in	4.75 mm	10.01 mm	0.394 in			Flame Retardant UV Resistant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 YELLOW 4FT	1	2	Yellow	0.187 in	4.75 mm	10.01 mm	0.394 in	4 ft	1.22 m	Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLUE 4FT	1	2	Blue	0.187 in	4.75 mm	10.01 mm	0.394 in	4 ft	1.22 m	Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLUE SPL	1	2	Blue	0.187 in	4.75 mm	10.01 mm	0.394 in			Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 RED 4FT	1	2	Red	0.187 in	4.75 mm	10.01 mm	0.394 in	4 ft	1.22 m	Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible
Sumitomo Electric Interconnect Products, Inc. B2 3/8 GREEN SPL	1	2	Green	0.187 in	4.75 mm	10.01 mm	0.394 in			Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 WHITE SPL	1	2	White	0.187 in	4.75 mm	10.01 mm	0.394 in			Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 YELLOW SPL	1	2	Yellow	0.187 in	4.75 mm	10.01 mm	0.394 in			Flame Retardant	90 °C	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C	Tubing Flexible	200 ft	61 m	Enter Number of Feet in Order Quantity
