45363/1 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

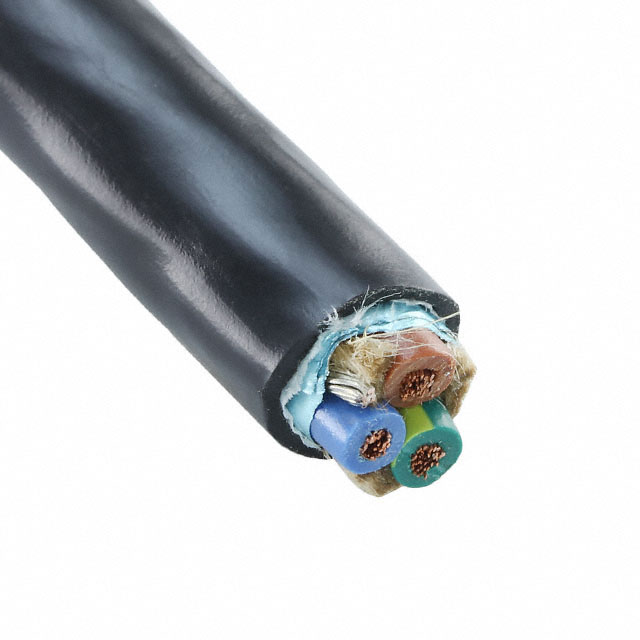

CABLE 3COND 16AWG BLK SHLD 1000'
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Shield Coverage | Length | Length | Shield Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Conductor Insulation | Features | Jacket (Insulation) Material | Jacket Color | Cable Type | Ratings | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -50 °C | 125 °C | 300 V | 100 % | 1000 ft | 304.8 m | Aluminum | 3 | 1.143 mm | 0.045 in | Foil | 7.47 mm | 0.294 in | Copper Tinned | 16 AWG | Thermoplastic Elastomer (TPE) | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | Black | Multi-Conductor | ISO 10993 | 19 | 0.0117 in |
 ALPHA WIRE | -50 °C | 125 °C | 300 V | 100 % | 1000 ft | 304.8 m | Aluminum | 3 | 1.143 mm | 0.045 in | Foil | 7.47 mm | 0.294 in | Copper Tinned | 16 AWG | Thermoplastic Elastomer (TPE) | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | Slate | Multi-Conductor | ISO 10993 | 19 | 0.0117 in |
