FD4D024 Series
Manufacturer: Belden Inc.
Beta
⌘K

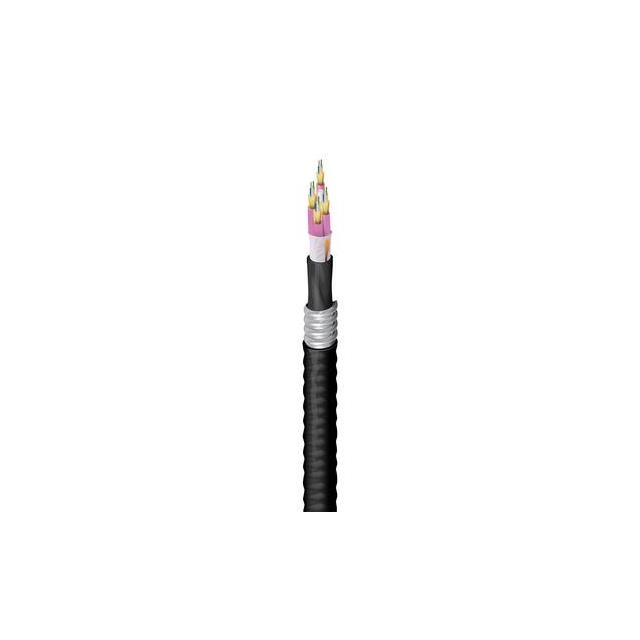

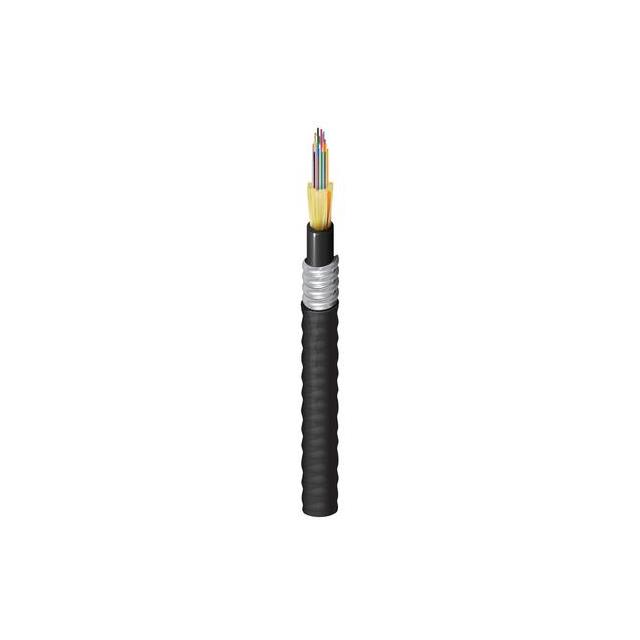

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Cladding Diameter [diameter] | Style | Core Diameter [diameter] | Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Features | Tensile Strength | Jacket Color | Jacket (Insulation) Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.6 in | 15.24 mm | 24 | Armored | 40.8 kg | Black | Poly-Vinyl Chloride (PVC) | OFCR |
 Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.96 in | 24.38 mm | 24 | Armored | 81.6 kg | Black | Poly-Vinyl Chloride (PVC) | OFCR |
 Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.325 in | 8.26 mm | 24 Fibers Rip Cord | 40.8 kg | Black | Poly-Vinyl Chloride (PVC) | OFNR | |
Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.33 in | 8.38 mm | 24 Fibers Rip Cord | 40.8 kg | Black | Poly-Vinyl Chloride (PVC) | OFNP | |
Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.876 in | 22.25 mm | 24 | Armored | 81.6 kg | Black | Poly-Vinyl Chloride (PVC) | OFCP |
Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.58 in | 14.73 mm | 24 | Armored | 40.8 kg | Black | Poly-Vinyl Chloride (PVC) | OFCP |
 Belden Inc. | 70 °C | -40 C | 125 µm | Multiple Fibers | 50 µm | Multimode | 0.527 " | 13.39 mm | 24 Fibers Rip Cord | 81.6 kg | Black | Poly-Vinyl Chloride (PVC) | OFNP |
