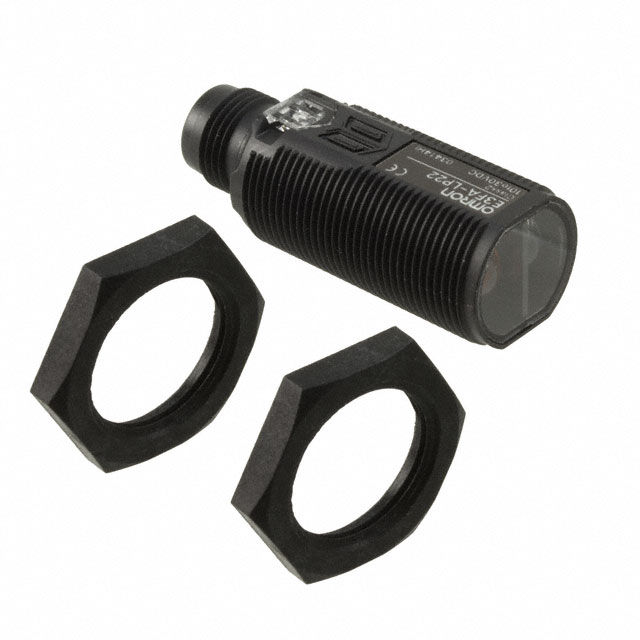

E3FA-DP Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SENSOR REFLECTIVE 300MM PNP
| Part | Response Time | Sensing Distance | Sensing Distance | Connection Method | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Light Source | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Method | Output Configuration | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 500 µs | 11.811 in | 300 mm | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | ||
 Omron Electronics Inc-EMC Div | 500 µs | 11.811 in | 300 mm | Cable | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 78.74 in | 2 m |
 Omron Electronics Inc-EMC Div | 500 µs | 39.37 in | 1 m | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | ||
Omron Electronics Inc-EMC Div | 500 µs | 3.937 in | 100 mm | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | ||
 Omron Electronics Inc-EMC Div | 500 µs | 3.937 in | 100 mm | Cable | 55 °C | -25 °C | IEC IEC IP67 IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 78.74 in | 2 m |
 Omron Electronics Inc-EMC Div | 500 µs | 11.811 in | 300 mm | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | ||
Omron Electronics Inc-EMC Div | 500 µs | 3.937 in | 100 mm | Cable | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 78.74 in | 2 m |
Omron Electronics Inc-EMC Div | 500 µs | 3.937 in | 100 mm | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | ||
Omron Electronics Inc-EMC Div | 500 µs | 3.937 in | 100 mm | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | ||
Omron Electronics Inc-EMC Div | 500 µs | 39.37 in | 1 m | Connector | 55 °C | -25 °C | IEC IP67 IP69K | Red LED | 30 VDC | 10 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable |
