AMC09 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 9POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Number of Positions	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Shrouding	Connector Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Overall Contact Length [x]	Overall Contact Length [x]	Contact Material	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Rows	Material Flammability Rating	Contact Shape	Insulation Material	Contact Finish	Number of Rows [custom]	Number of Positions/Bay/Row	Flange Feature	Read Out	Pitch	Pitch	Card Type	Gender	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Row Spacing - Mating [x]	Row Spacing - Mating [x]

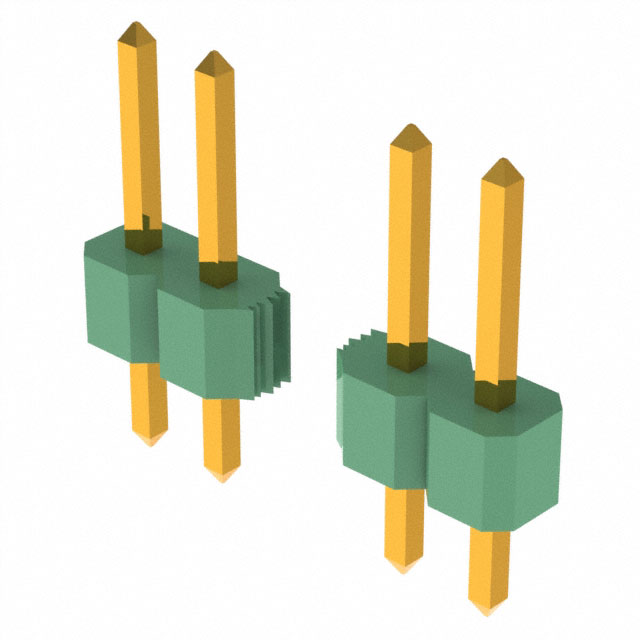

Sullins Connector Solutions AMC09SAAN	-65 ░C	200 °C	Male Pin	All	9	Gold	3.05 mm	0.12 in	0.1 in	2.54 mm	Unshrouded	Header Breakaway	Gold	10 Áin	0.25 çm	Board to Board Cable	11.43 mm	0.45 in	Beryllium Copper	Solder	Green	0.1 "	2.54 mm	0.23 in	5.84 mm	Push-Pull	Through Hole	0.76 Ám	30 Áin	3 A	1	UL94 V-0	Square	Polyphenylene Sulfide (PPS)
Sullins Connector Solutions AMC09MMST	-65 ░C	200 °C			18														Beryllium Copper	Solder															Gold	2	9	4-40 Flush Mount Threaded Insert Top Opening	Dual	0.1 "	2.54 mm	Fits Female Edgecards	Male	Polyphenylene Sulfide (PPS)	30 Áin	0.76 Ám

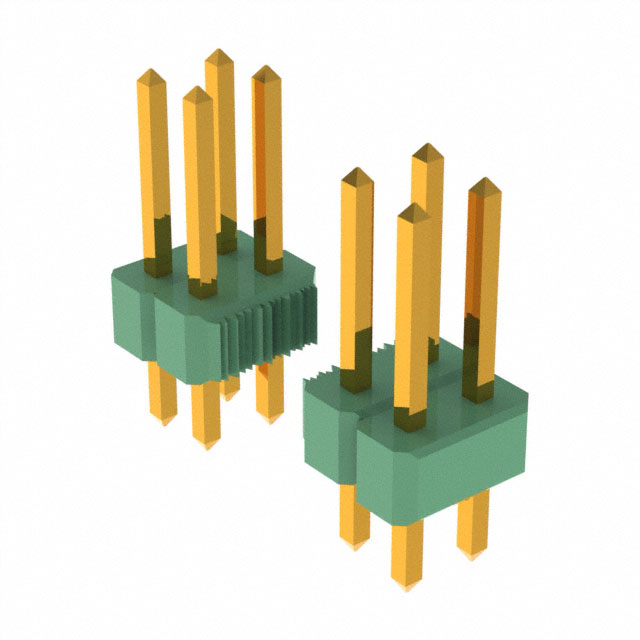

Sullins Connector Solutions AMC09DAAN	-65 ░C	200 °C	Male Pin	All	18	Gold	3.05 mm	0.12 in	0.1 in	2.54 mm	Unshrouded	Header Breakaway	Gold	10 Áin	0.25 çm	Board to Board Cable	11.43 mm	0.45 in	Beryllium Copper	Solder	Green	0.1 "	2.54 mm	0.23 in	5.84 mm	Push-Pull	Through Hole	0.76 Ám	30 Áin	3 A		UL94 V-0	Square	Polyphenylene Sulfide (PPS)		2											0.1 in	2.54 mm
