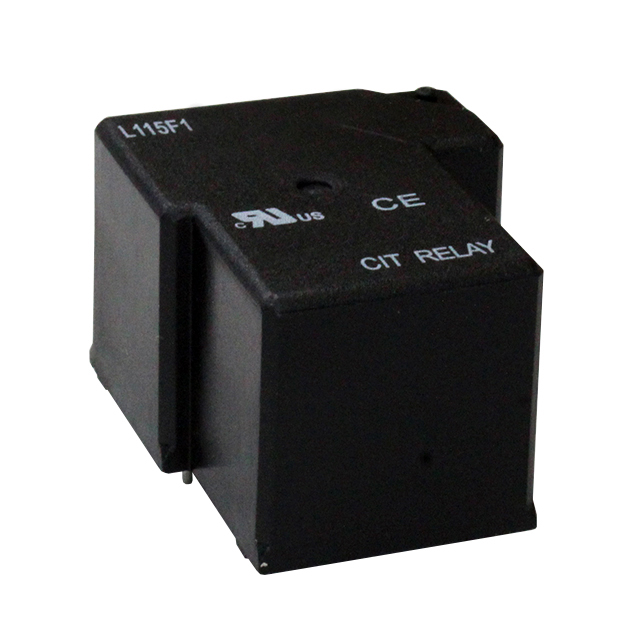

L115F11 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 40A 24V
| Part | Coil Resistance | Seal Rating | Contact Form | Coil Voltage | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Switching Voltage [Max] | Coil Type | Operate Time | Relay Type | Load - Max Switching | Mounting Type | Contact Rating (Current) | Termination Style | Release Time | Coil Insulation | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 640 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | 0.0375 A | -55 C | 125 °C | Silver Tin Oxide Indium Oxide (AgSnOInO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 4400 W 11080 VA | Through Hole | 40 A | PC Pin | 15 ms | Class F | 19.2 VDC |
CIT Relay and Switch | 640 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | 0.0375 A | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 4400 W 11080 VA | Through Hole | 40 A | PC Pin | 15 ms | Class F | 19.2 VDC |
CIT Relay and Switch | 384 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | 62.5 mA | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 5500 W 13850 VA | Through Hole | 50 A | PC Pin | 15 ms | Class F | 19.2 VDC |
CIT Relay and Switch | 96 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 12 VDC | 125 mA | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 5500 W 13850 VA | Through Hole | 50 A | PC Pin | 15 ms | Class F | 9.6 VDC |
 CIT Relay and Switch | 384 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | 62.5 mA | -55 C | 125 °C | Silver Tin Oxide Indium Oxide (AgSnOInO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 5500 W 13850 VA | Through Hole | 50 A | PC Pin | 15 ms | Class F | 19.2 VDC |
CIT Relay and Switch | 640 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | 0.0375 A | -55 C | 125 °C | Silver Tin Oxide (AgSnO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 3300 W 8310 VA | Through Hole | 30 A | PC Pin | 15 ms | Class F | 19.2 VDC |
CIT Relay and Switch | 28 Ohms | Sealed - Fully | SPDT (1 Form C) | 5 VDC | 178.6 mA | -55 C | 125 °C | Silver Tin Oxide Indium Oxide (AgSnOInO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 4400 W 11080 VA | Through Hole | 40 A | PC Pin | 15 ms | Class F | 4 VDC |
CIT Relay and Switch | 1.536 kOhms | Sealed - Fully | SPST-NO (1 Form A) | 48 VDC | 31.3 mA | -55 C | 125 °C | Silver Tin Oxide Indium Oxide (AgSnOInO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 5500 W 13850 VA | Through Hole | 50 A | PC Pin | 15 ms | Class F | 38.4 VDC |
CIT Relay and Switch | 160 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 12 VDC | 0.075 A | -55 C | 125 °C | Silver Tin Oxide Indium Oxide (AgSnOInO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 3300 W 8310 VA | Through Hole | 30 A | PC Pin | 15 ms | Class F | 9.6 VDC |
CIT Relay and Switch | 640 Ohms | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | 0.0375 A | -55 C | 125 °C | Silver Tin Oxide Indium Oxide (AgSnOInO) | 110 VDC 277 VAC | Latching Single Coil | 15 ms | General Purpose | 3300 W 8310 VA | Through Hole | 30 A | PC Pin | 15 ms | Class F | 19.2 VDC |
