WR9HD2000 Series

Catalog

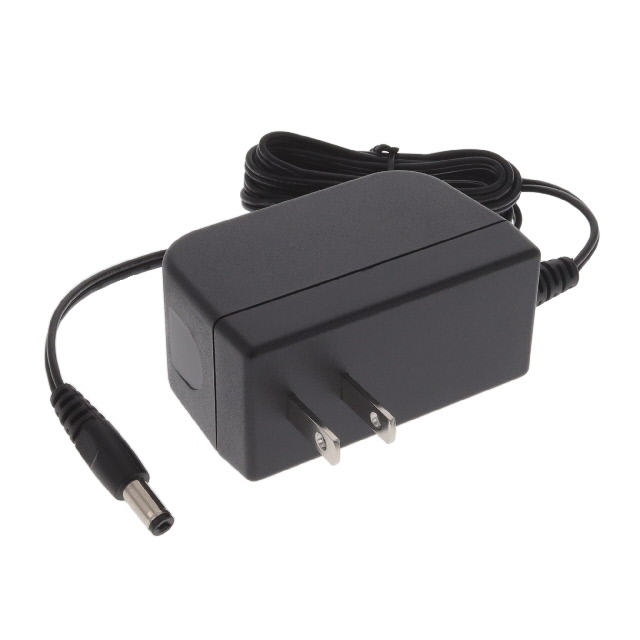

AC/DC WALL MOUNT ADAPTER 9V 18W

Part	Current - Output (Max) [Max]	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	No Load Power Consumption	Input Type	Efficiency	Cord Length	Cord Length	Form	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector	Output Connector [x]	Polarization	Region Utilized	Power (Watts)	Approval Agency	Applications	Standard Number
GlobTek, Inc. WR9HD2000LCP-F(R6B)	2 A	9 V	35 mm	46 mm	2.89 in	1.81 "	1.38 in	73.5 mm	NEMA 1-15P	75 mW	Fixed Blade	CoC Tier 2 Level VI	1.5 m	59 in	Wall Mount	264 VAC	90 VAC	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	Positive Center	North America	18 W	CB cULus EAC LPS PSE UkrSEPRO VCCI	ITE (Commercial)	60950-1
