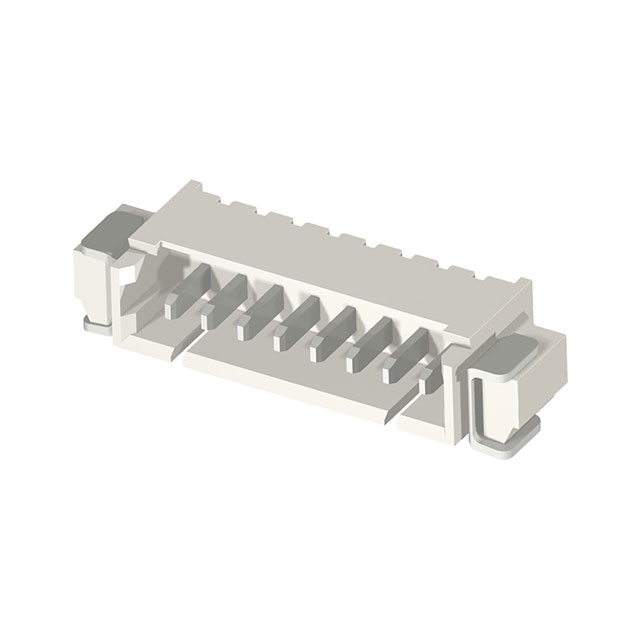

CI4405M1 Series
Manufacturer: Cvilux USA
Beta
⌘K
5 POS 1.25MM(.049) WIRE TO BOARD
| Part | Contact Material | Fastening Type | Shrouding | Number of Positions | Style | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Insulation Material | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Features | Contact Type | Termination | Contact Shape | Number of Positions Loaded | Mounting Type | Contact Finish - Post | Voltage Rating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | Phosphor Bronze | Detent Lock | Shrouded - 3 Wall | 5 | Board to Cable/Wire | Natural | 85 °C | -40 C | UL94 V-0 | Halogen Free Nylon 6T Polyamide (PA6T) | 0.049 in | 1.25 mm | 0.134 in | 3.4 mm | Header | Solder Retention | Tab | Solder | Rectangular | All | Right Angle Surface Mount | Tin | 125 VAC | 1 |
 Cvilux USA | Phosphor Bronze | Detent Lock | Shrouded - 3 Wall | 5 | Board to Cable/Wire | Natural | 85 °C | -40 C | UL94 V-0 | Halogen Free Nylon 6T Polyamide (PA6T) | 0.049 in | 1.25 mm | 0.189 in | 4.8 mm | Header | Solder Retention | Tab | Solder | Rectangular | All | Surface Mount | Tin | 125 VAC | 1 |
